Eigenschappen

Bouwjaar: 1960
Kilometerstand: 22.896
Aantal cilinders: 1
Inhoud: 247 cc
Kleur: rood

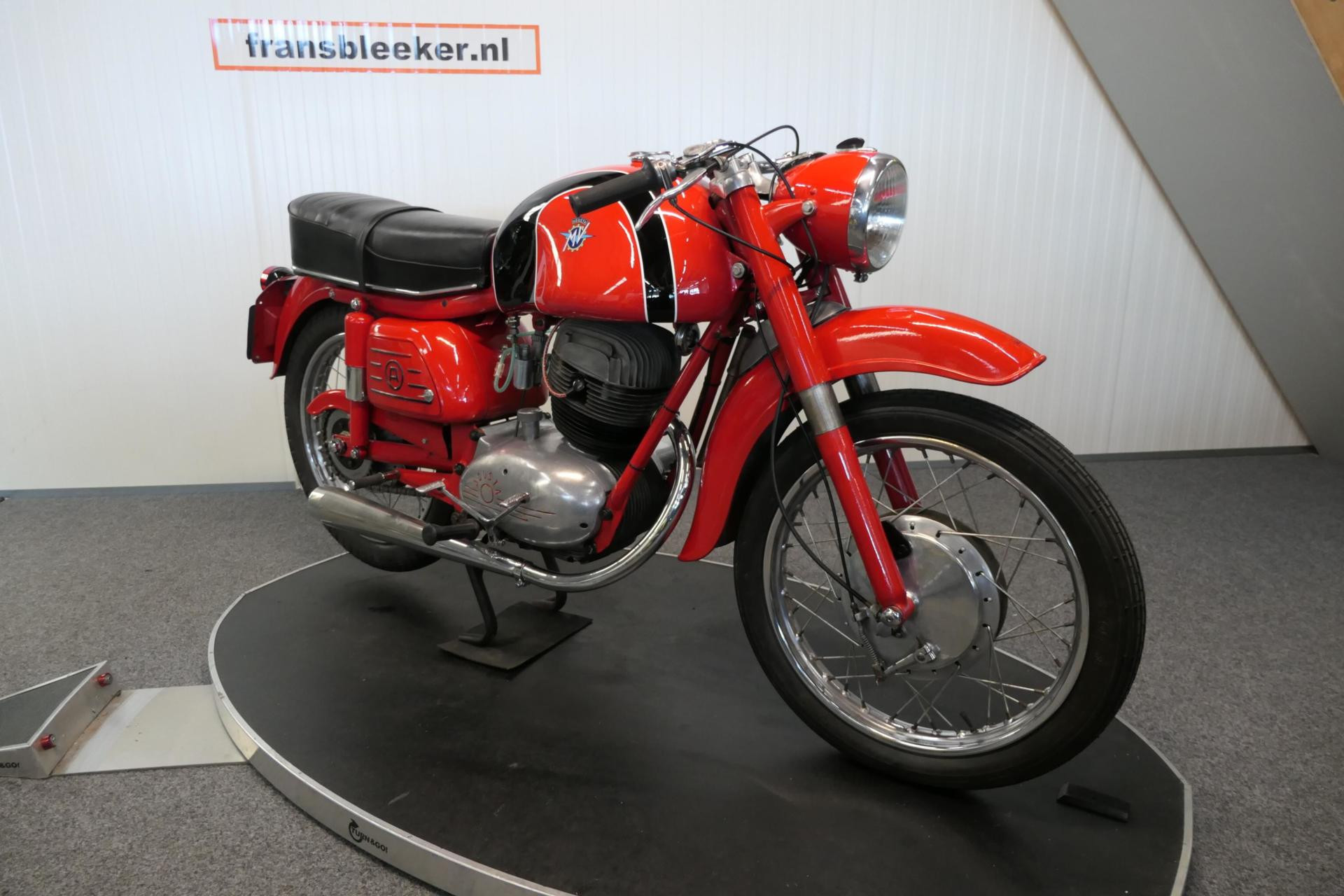

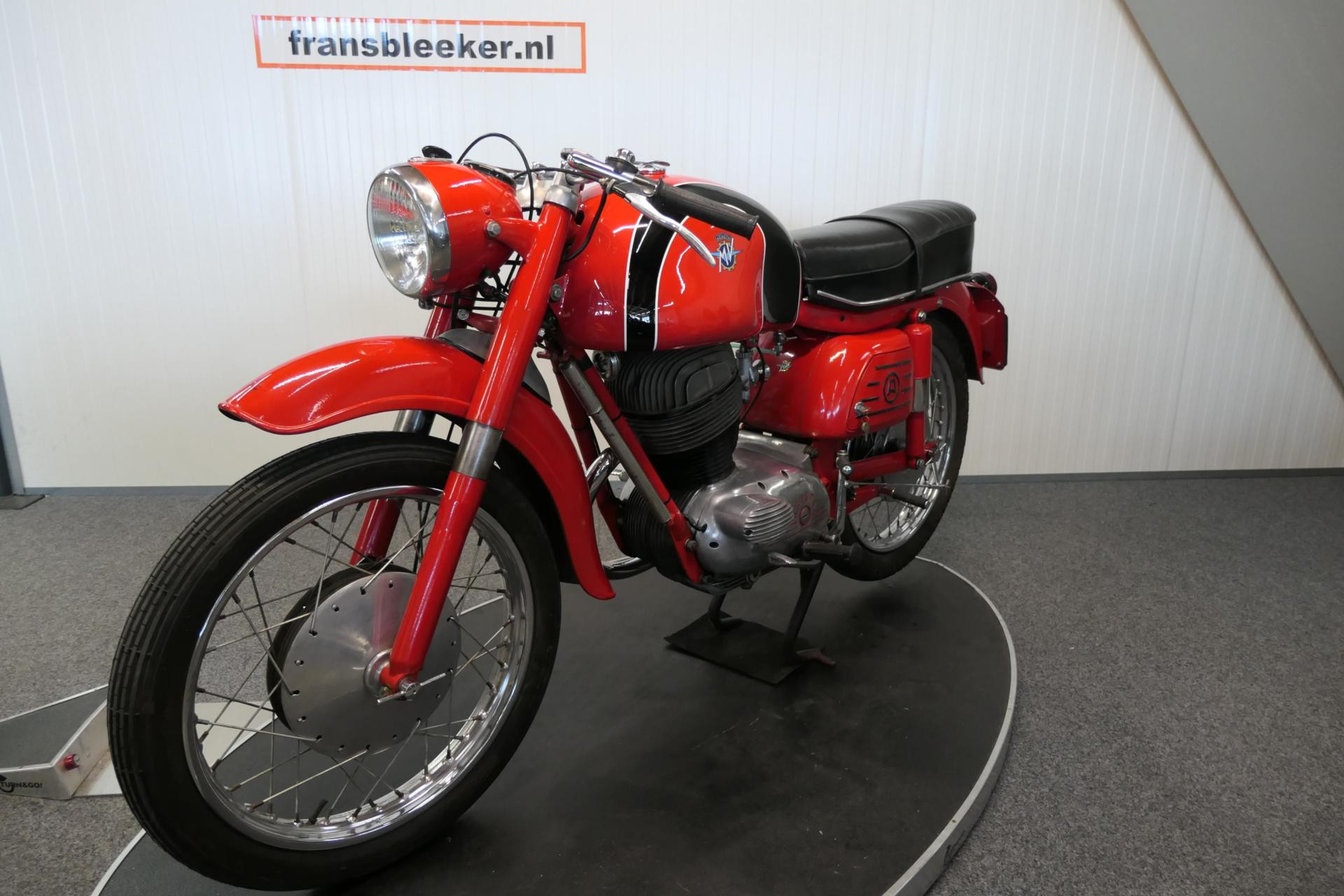

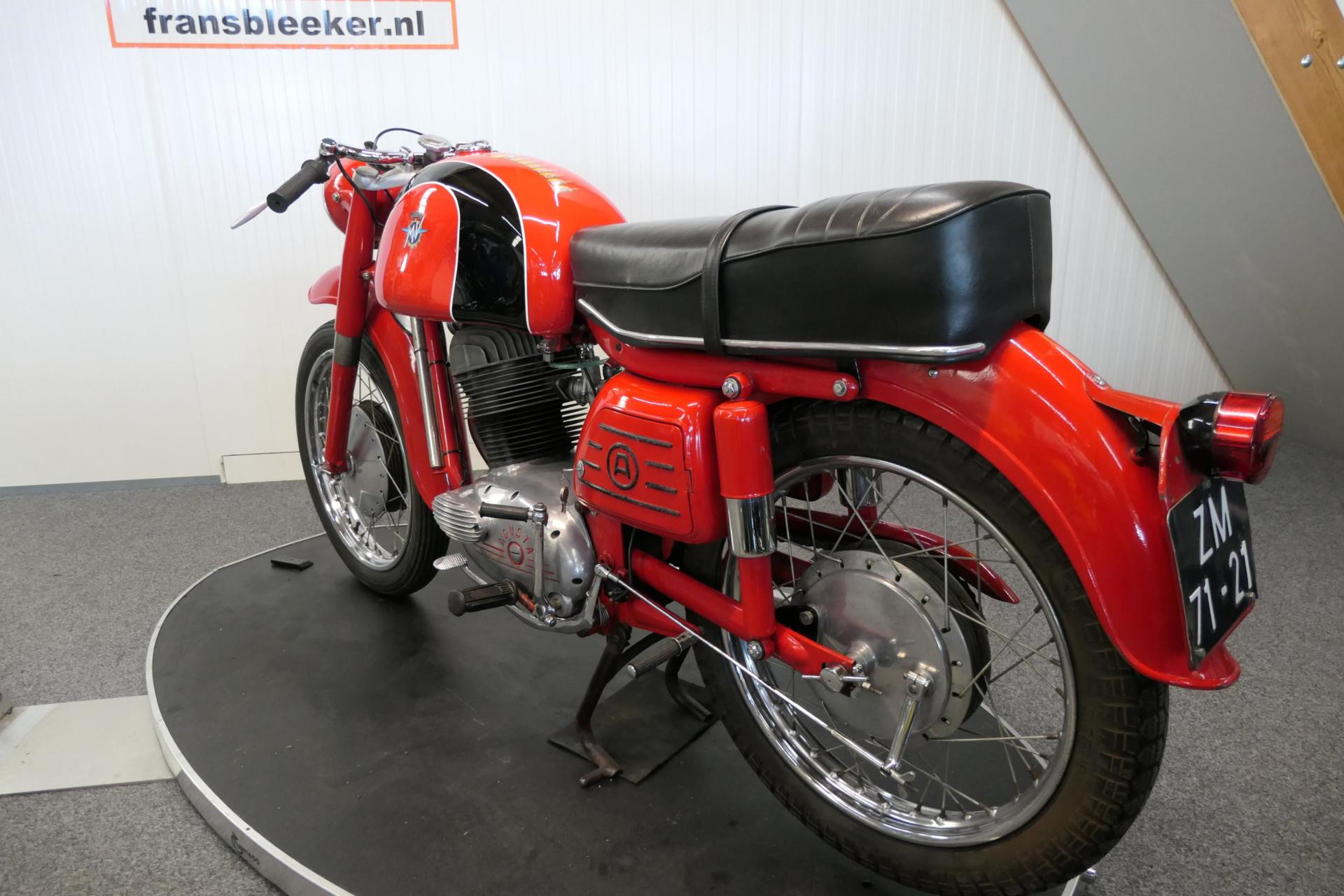

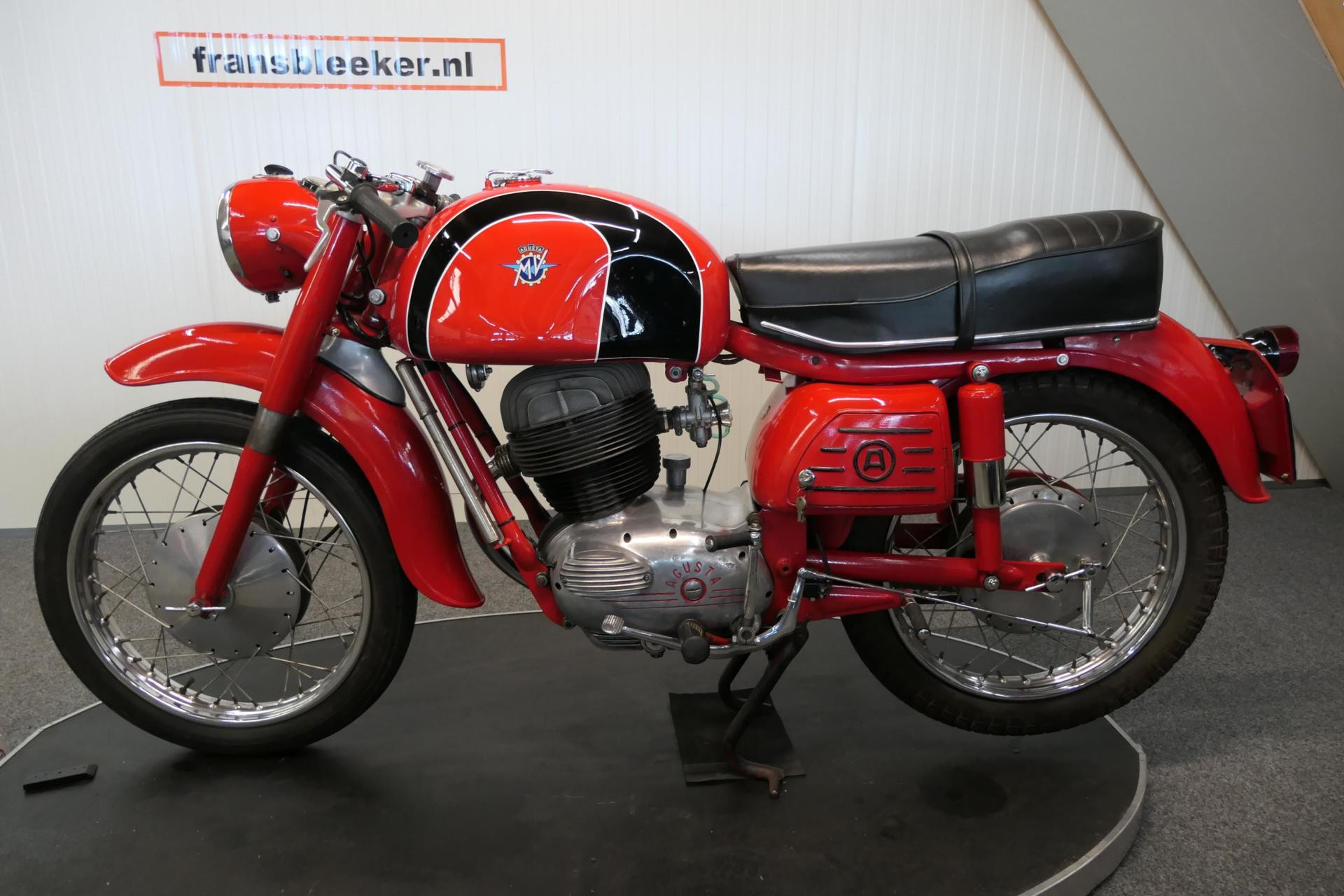

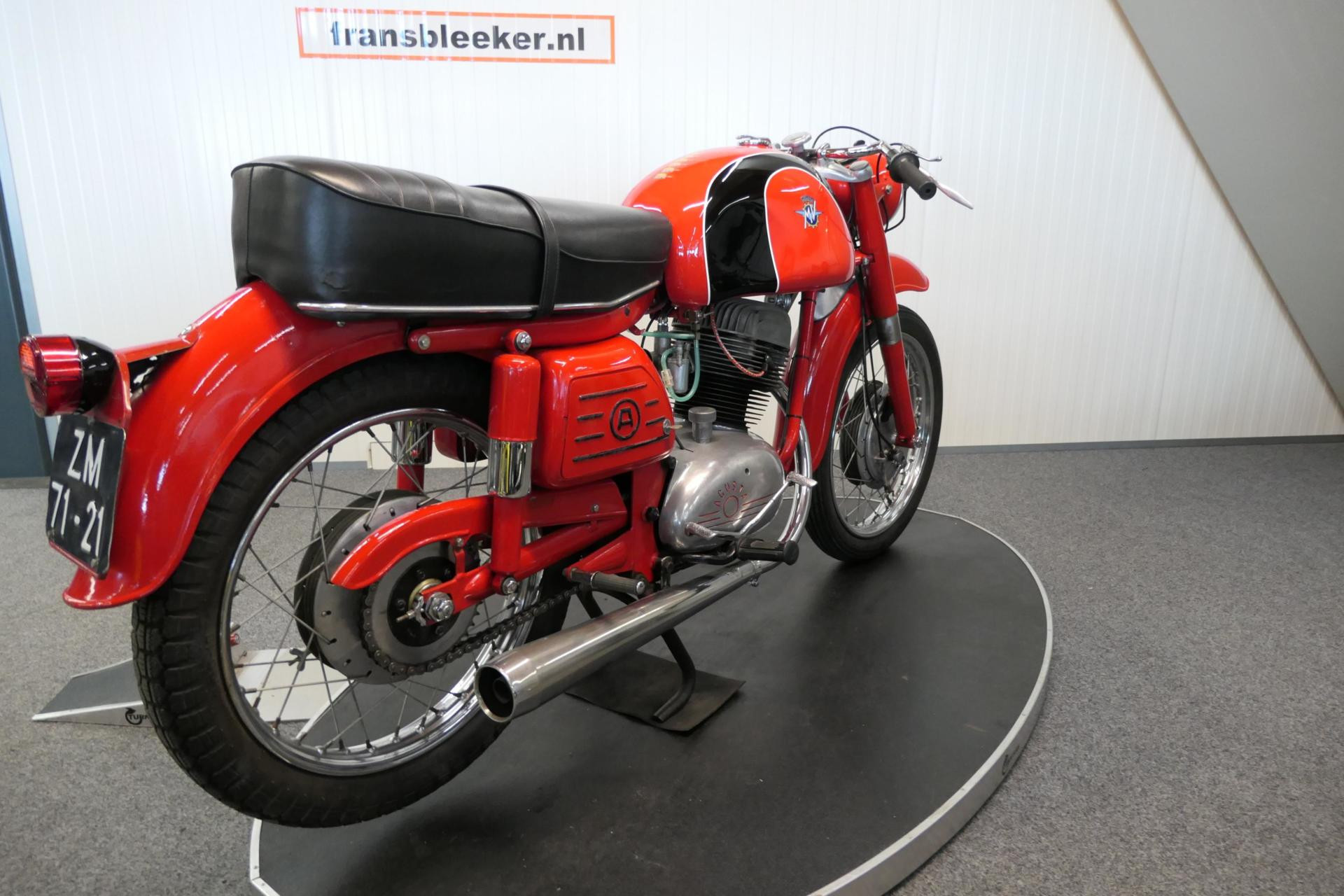

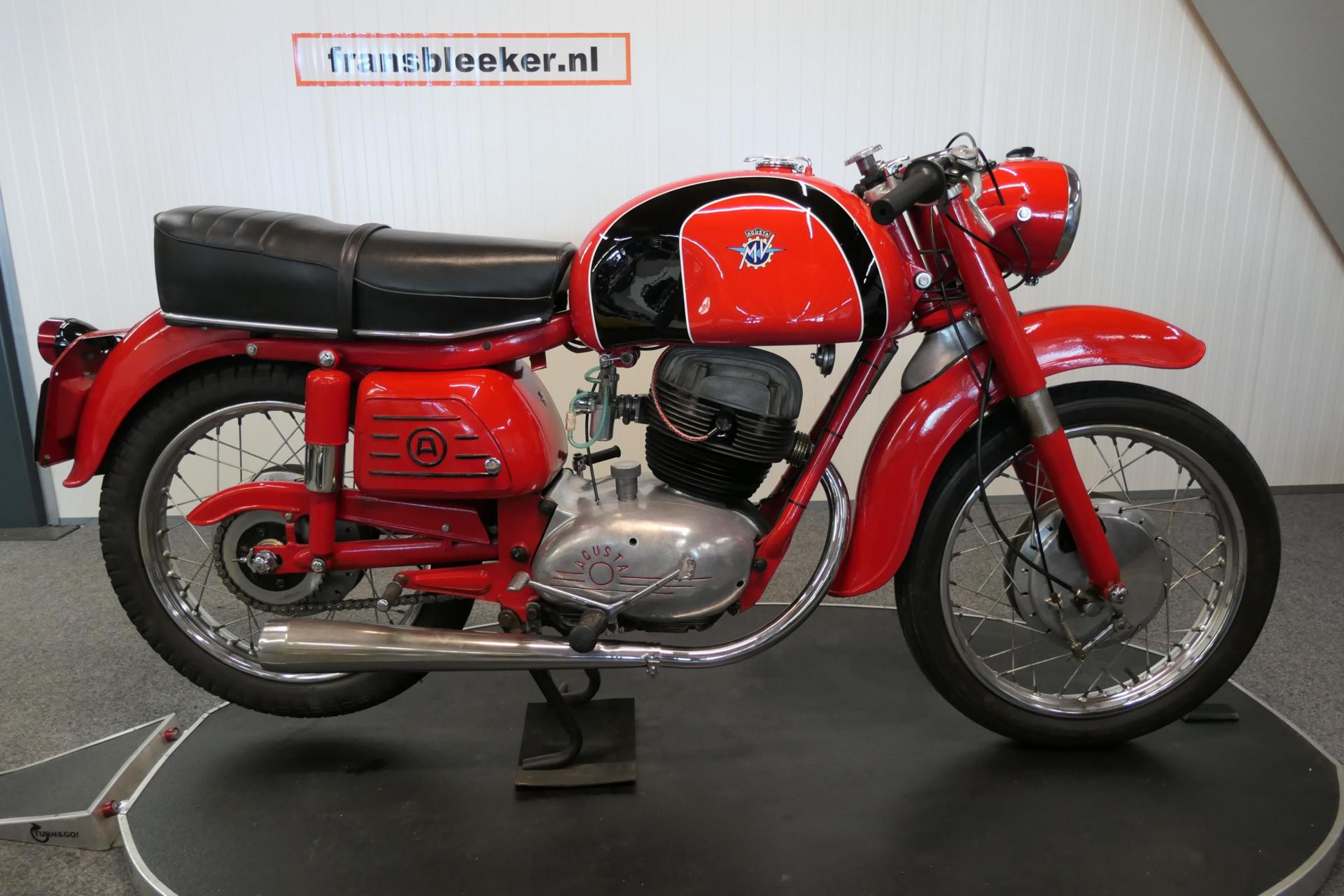

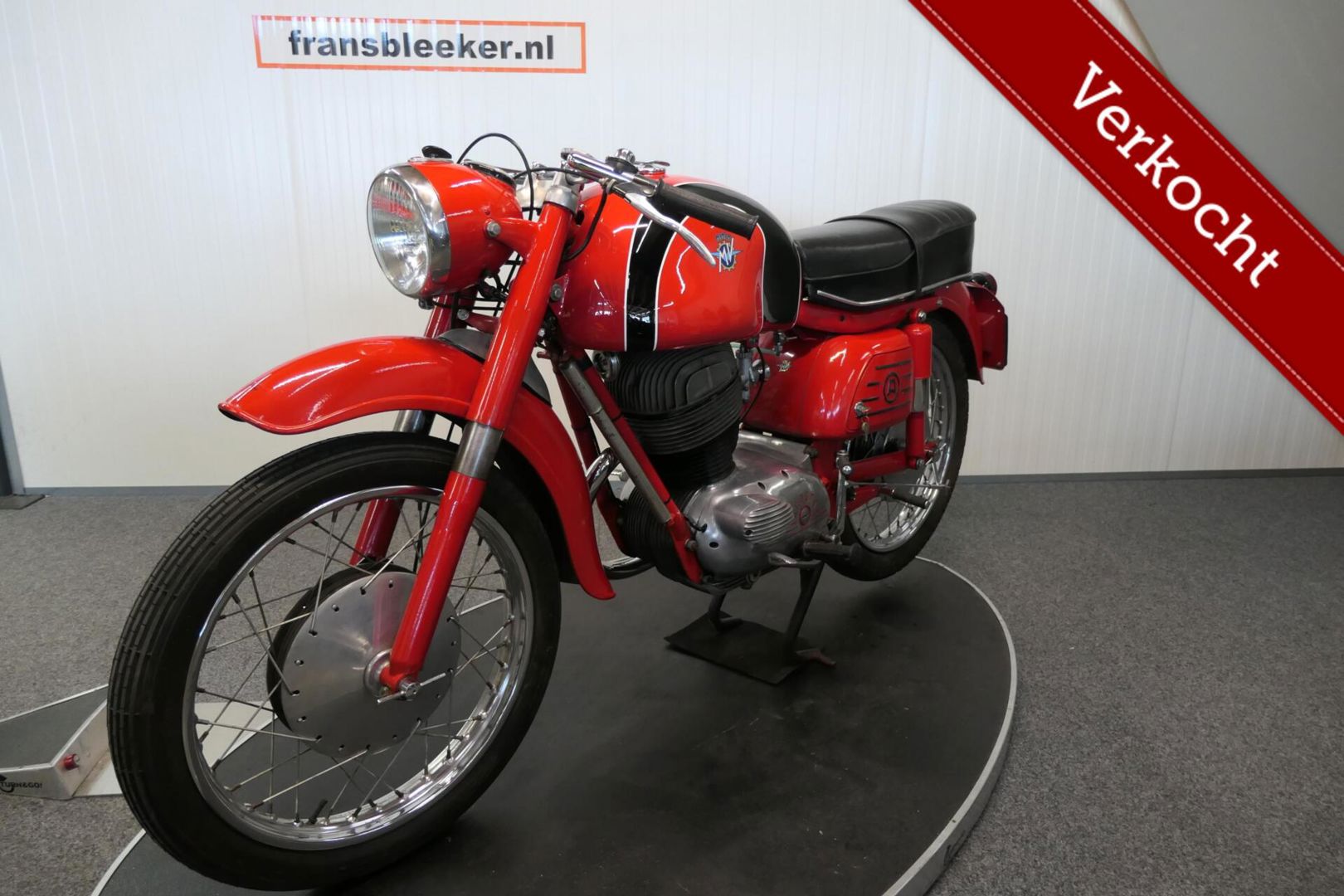

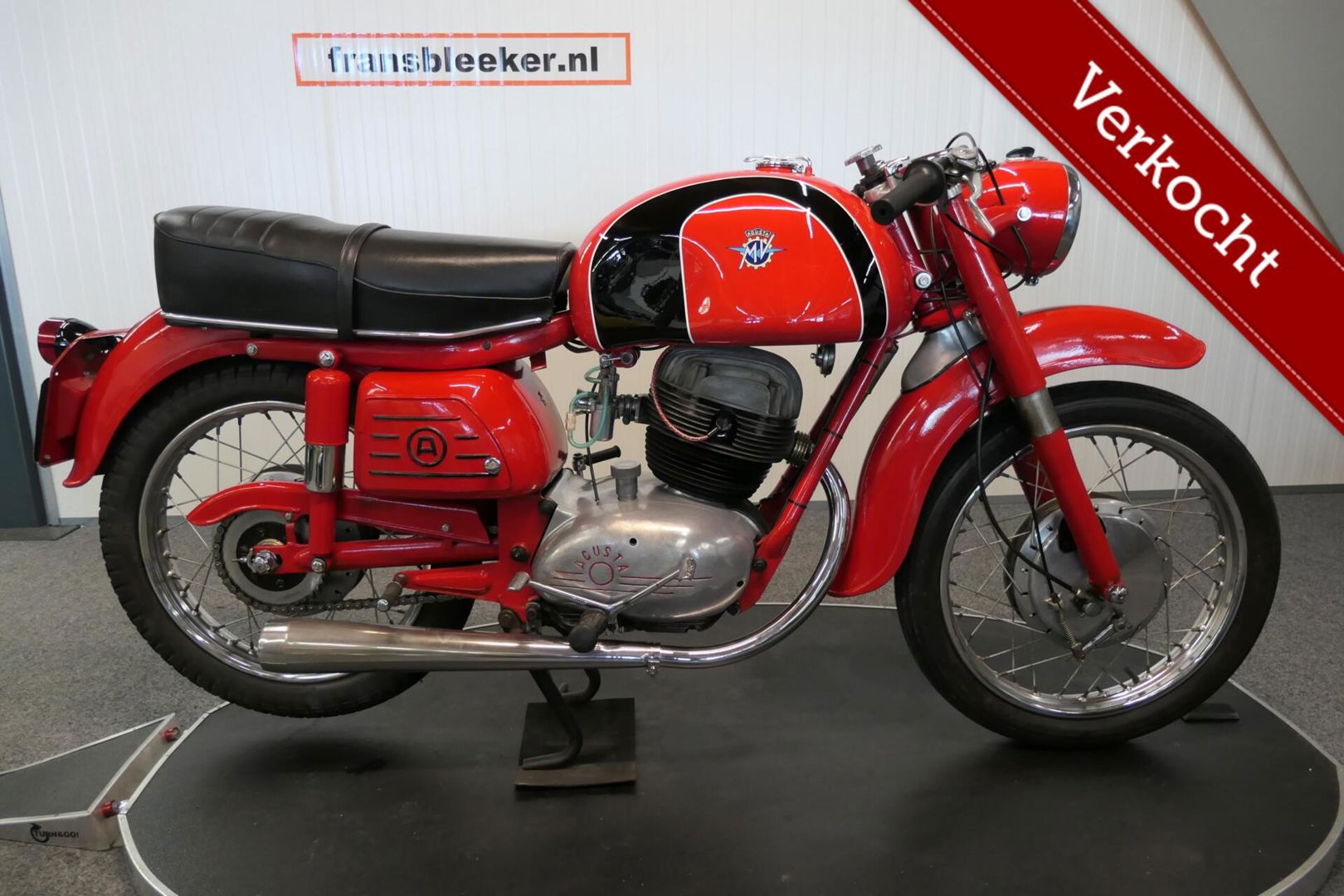

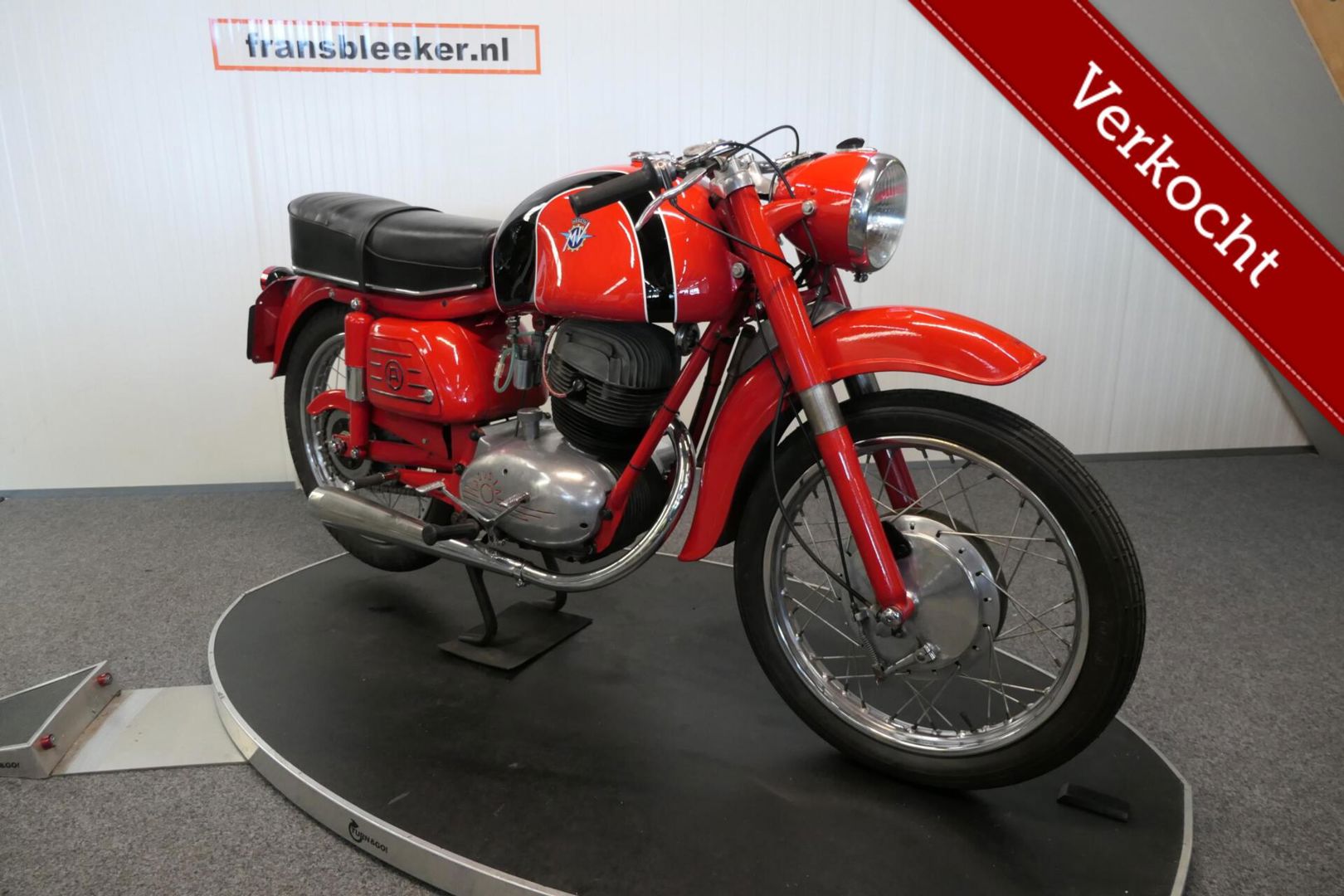

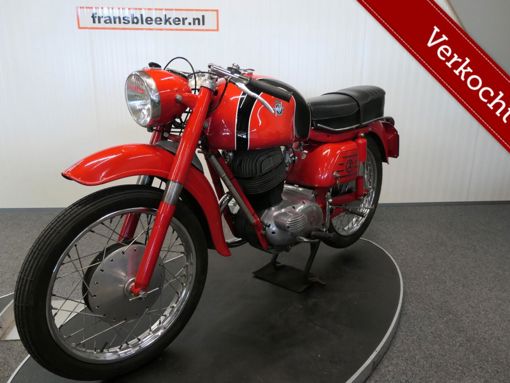

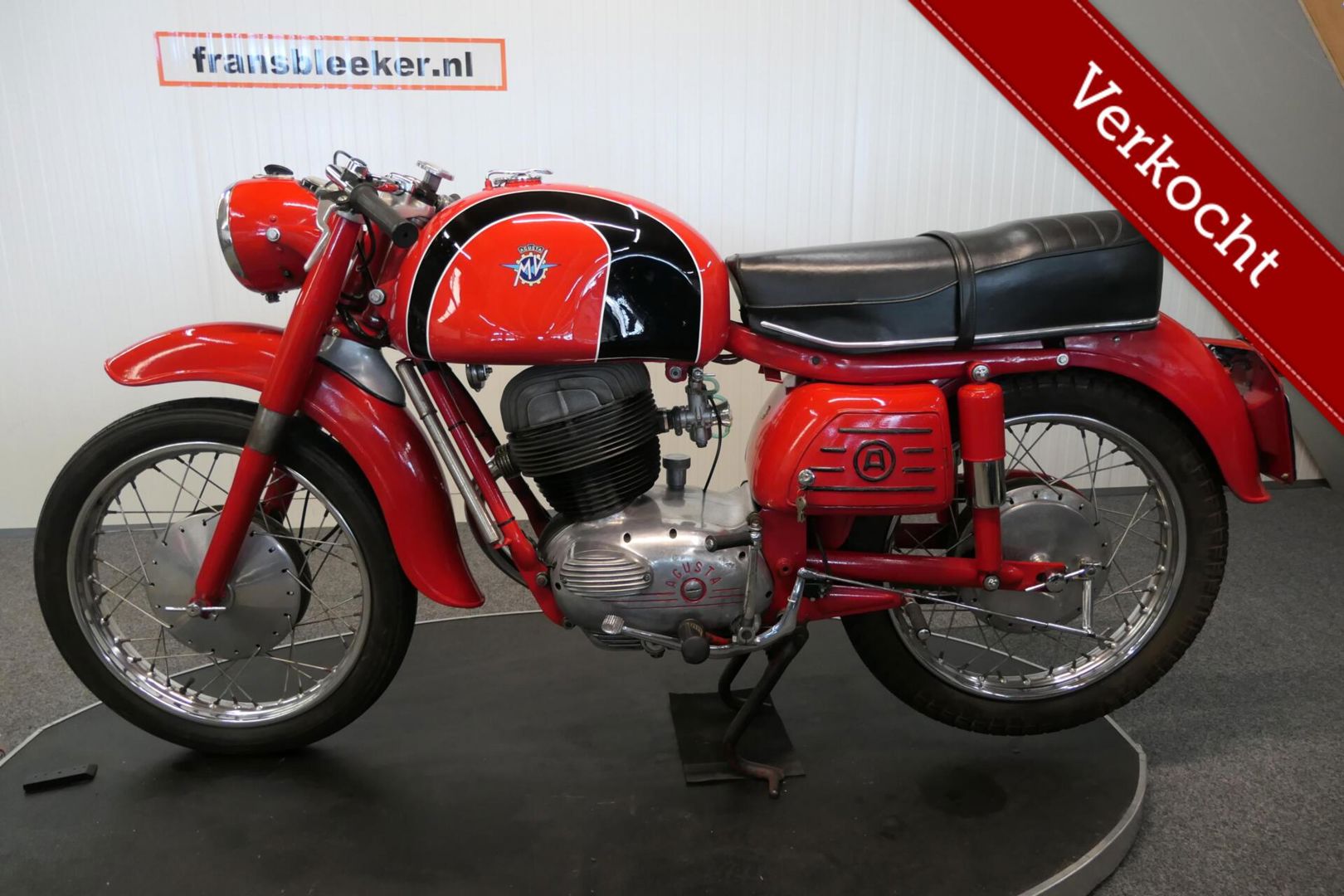

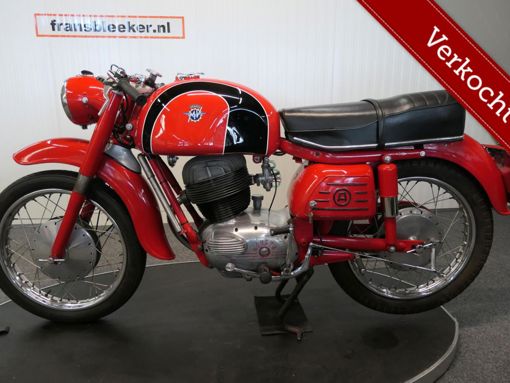

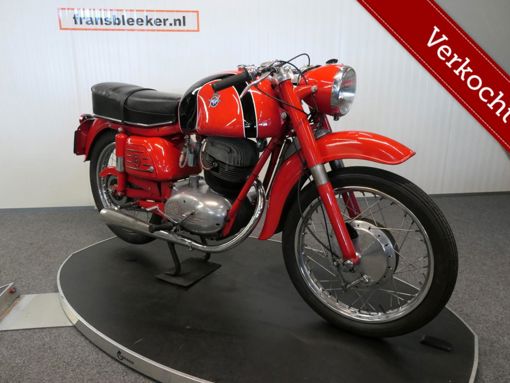

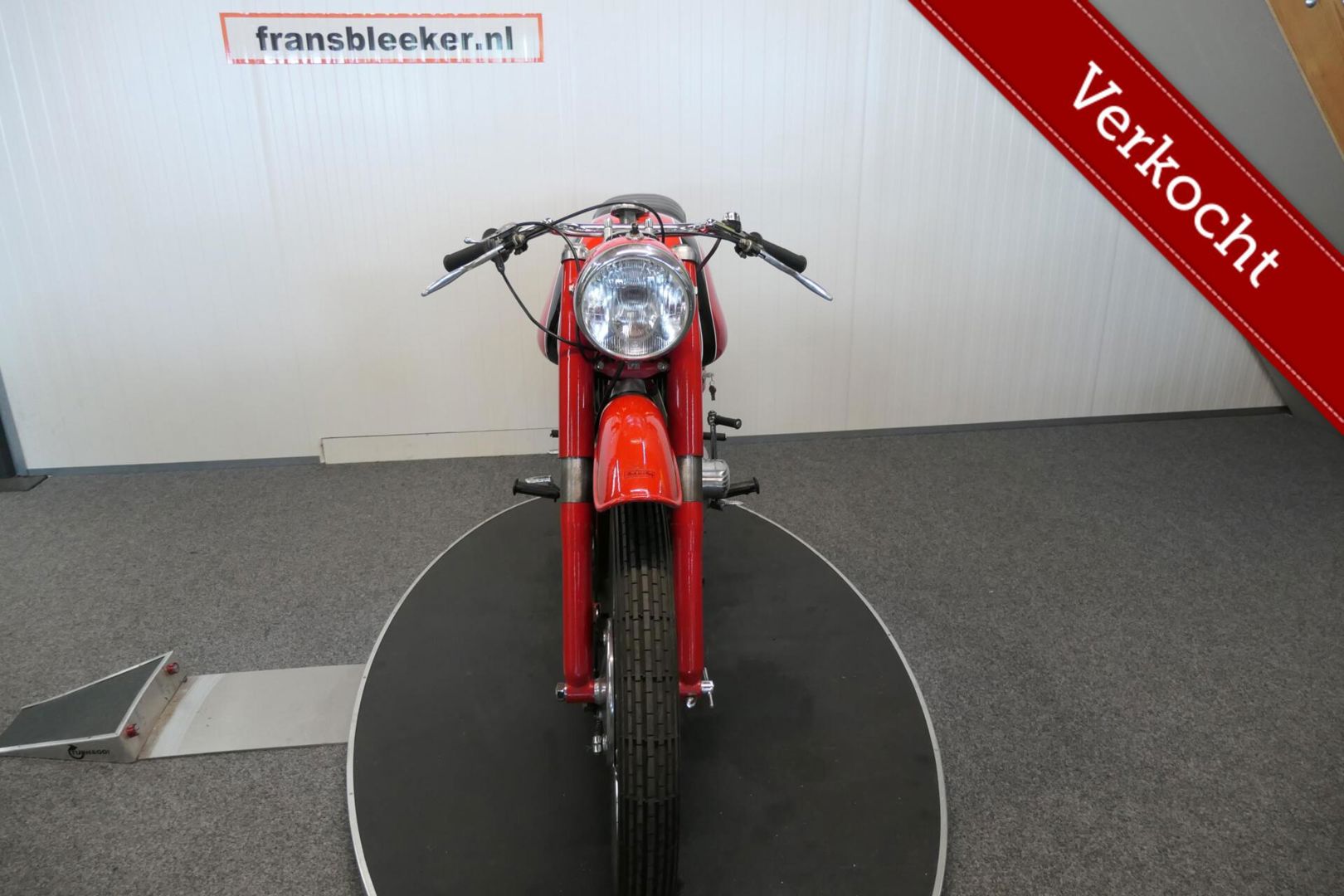

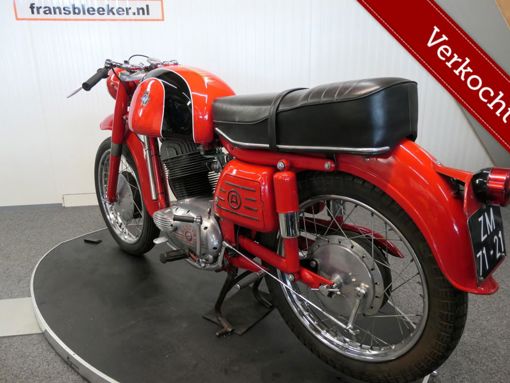

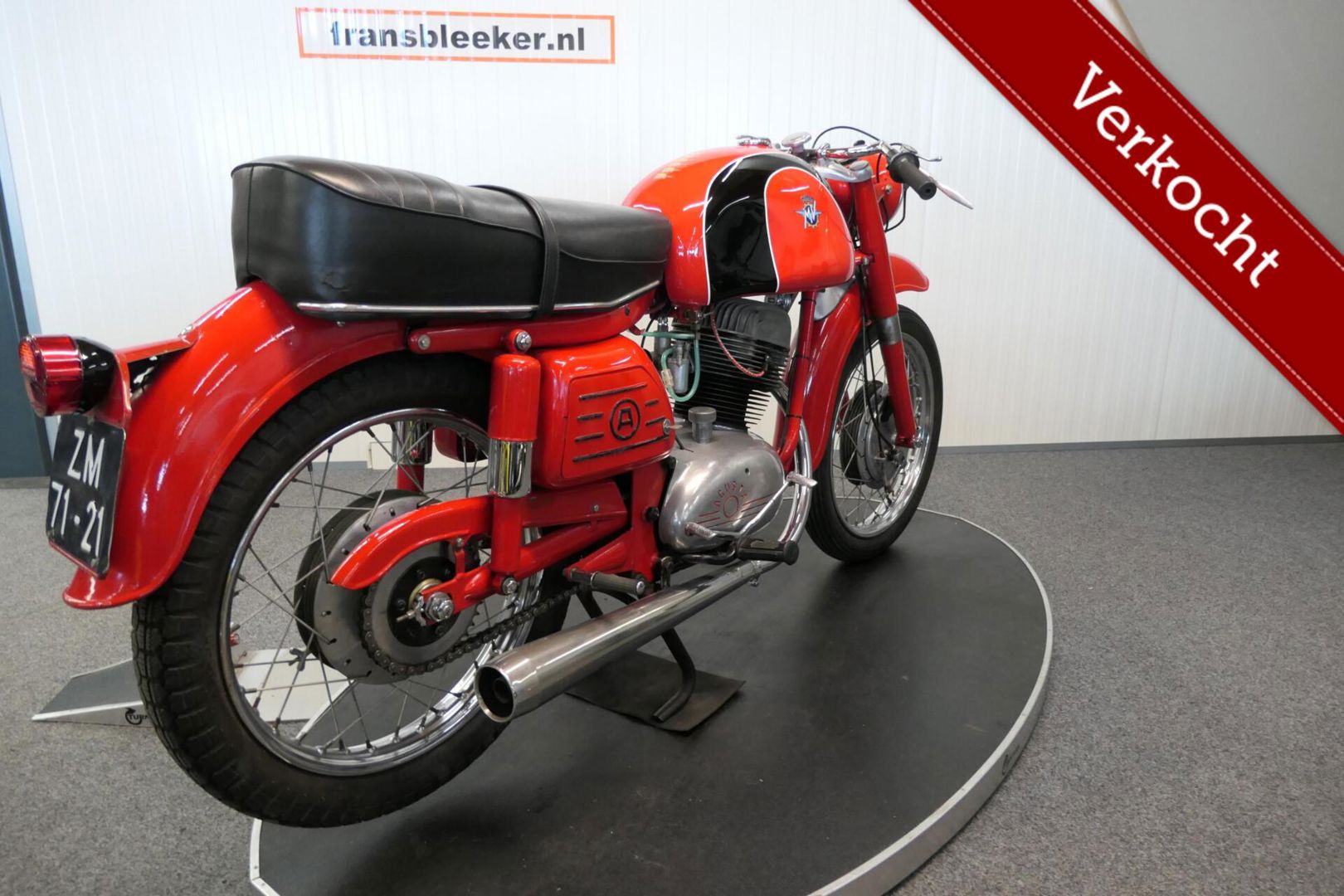

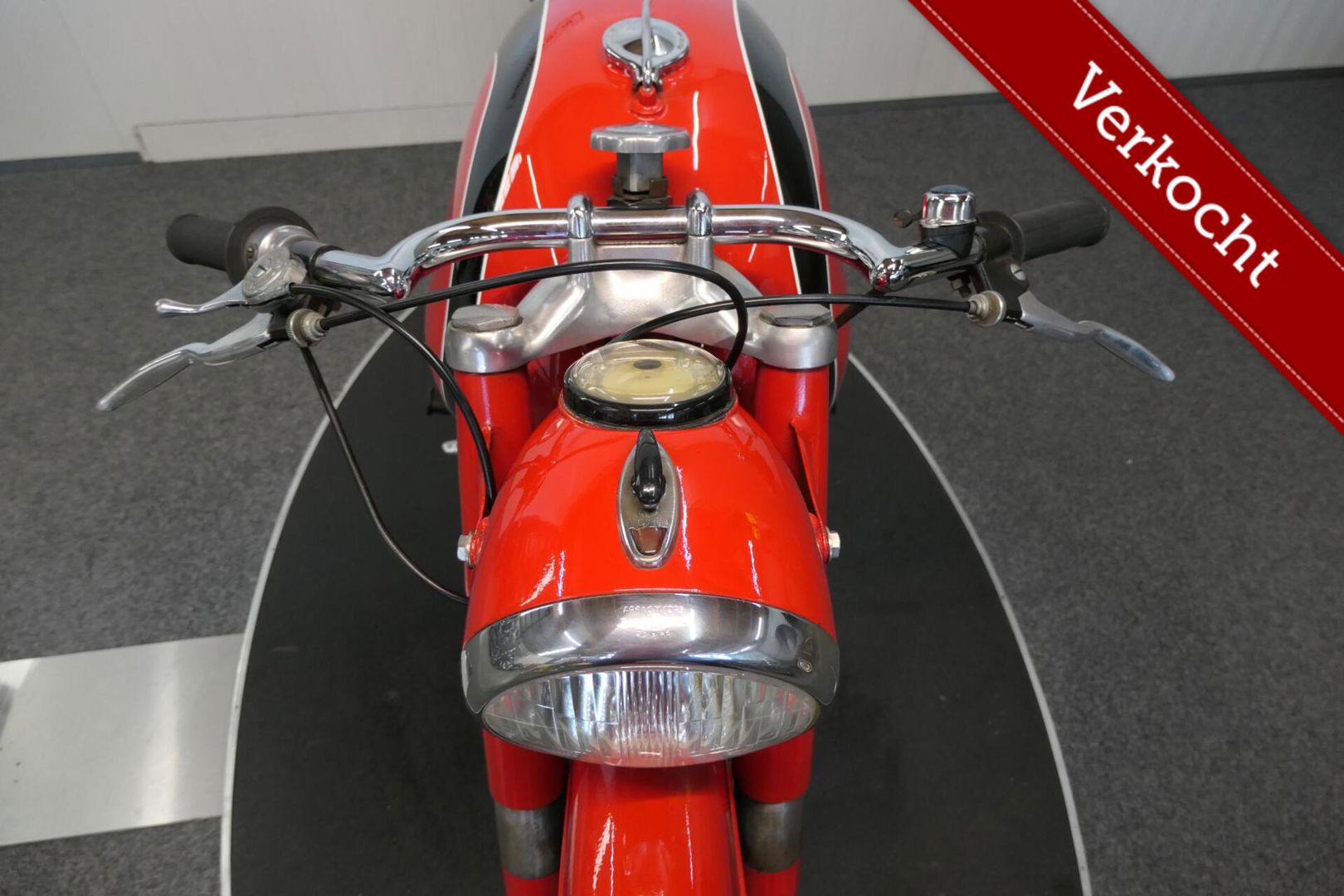

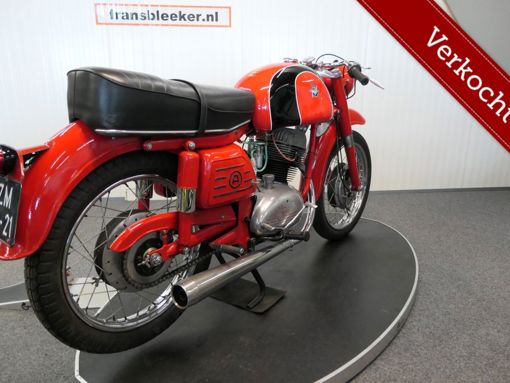

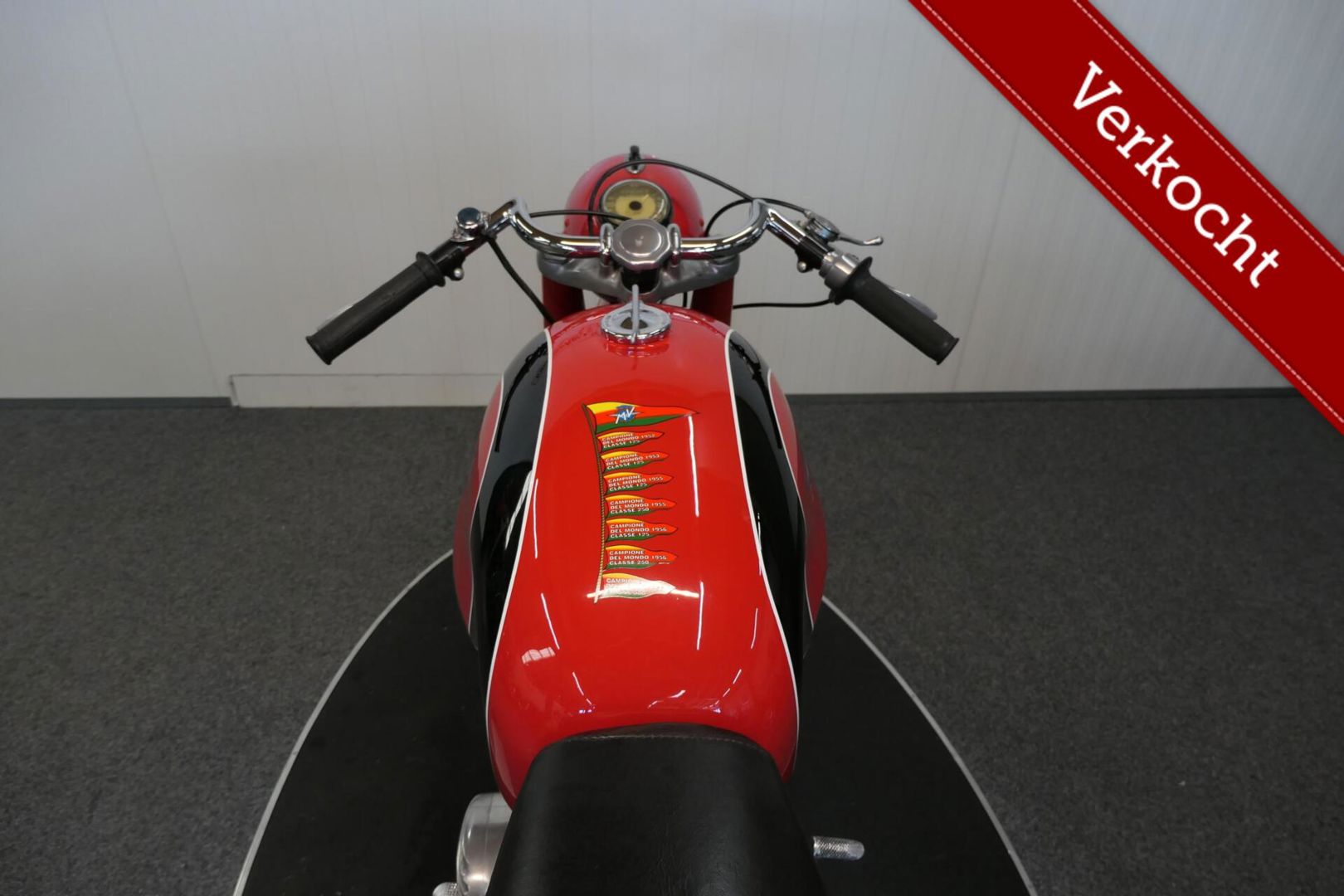

MV Agusta RAID 250

€ 10.750,- incl. btw

MV Agusta RAID 250

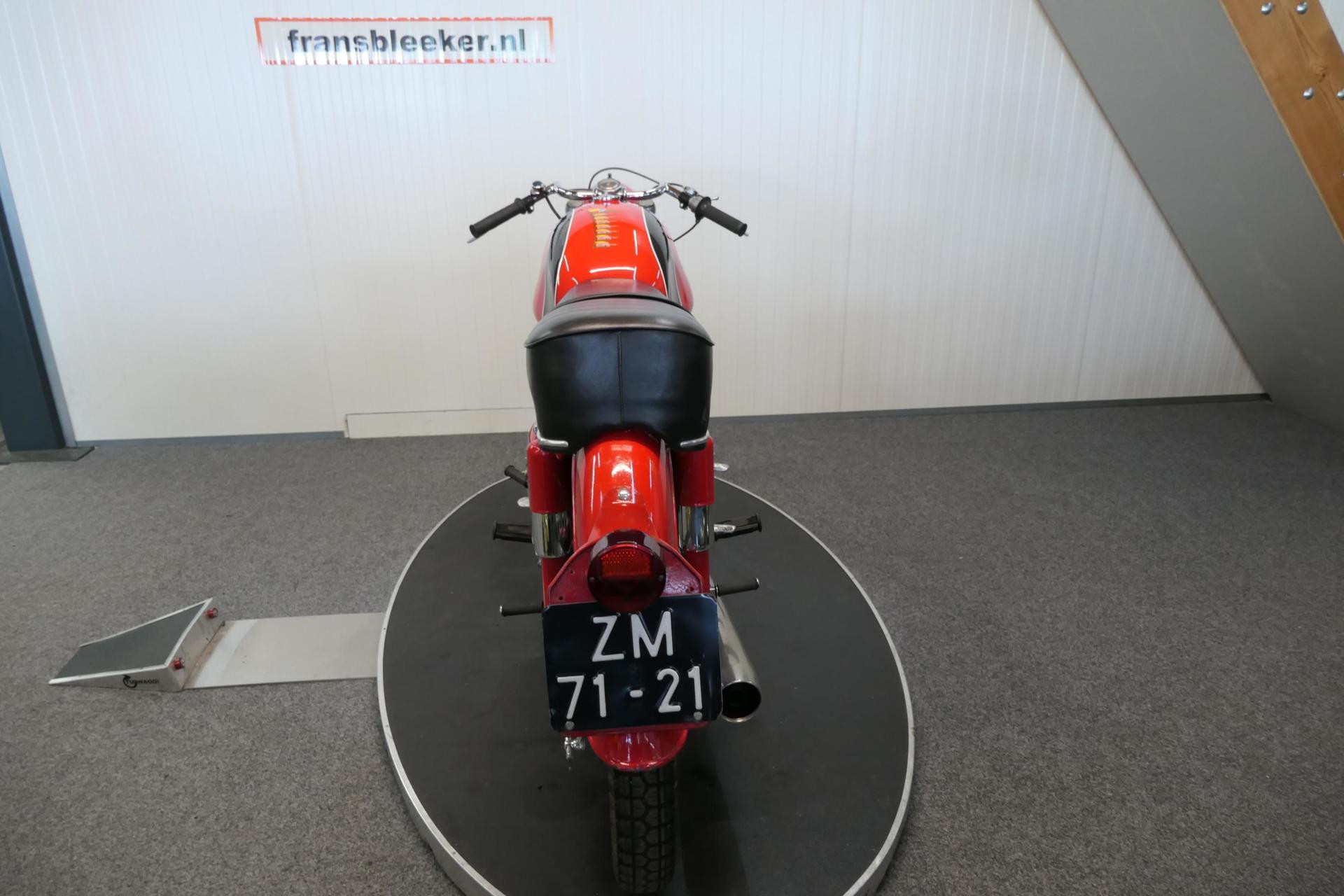

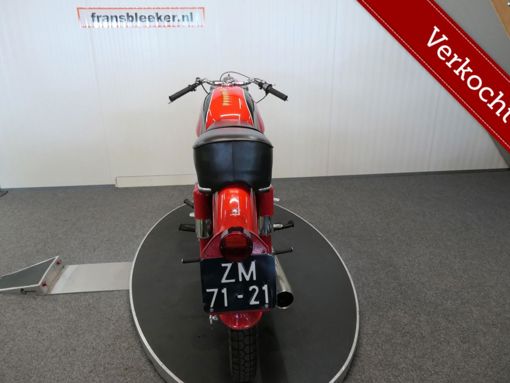

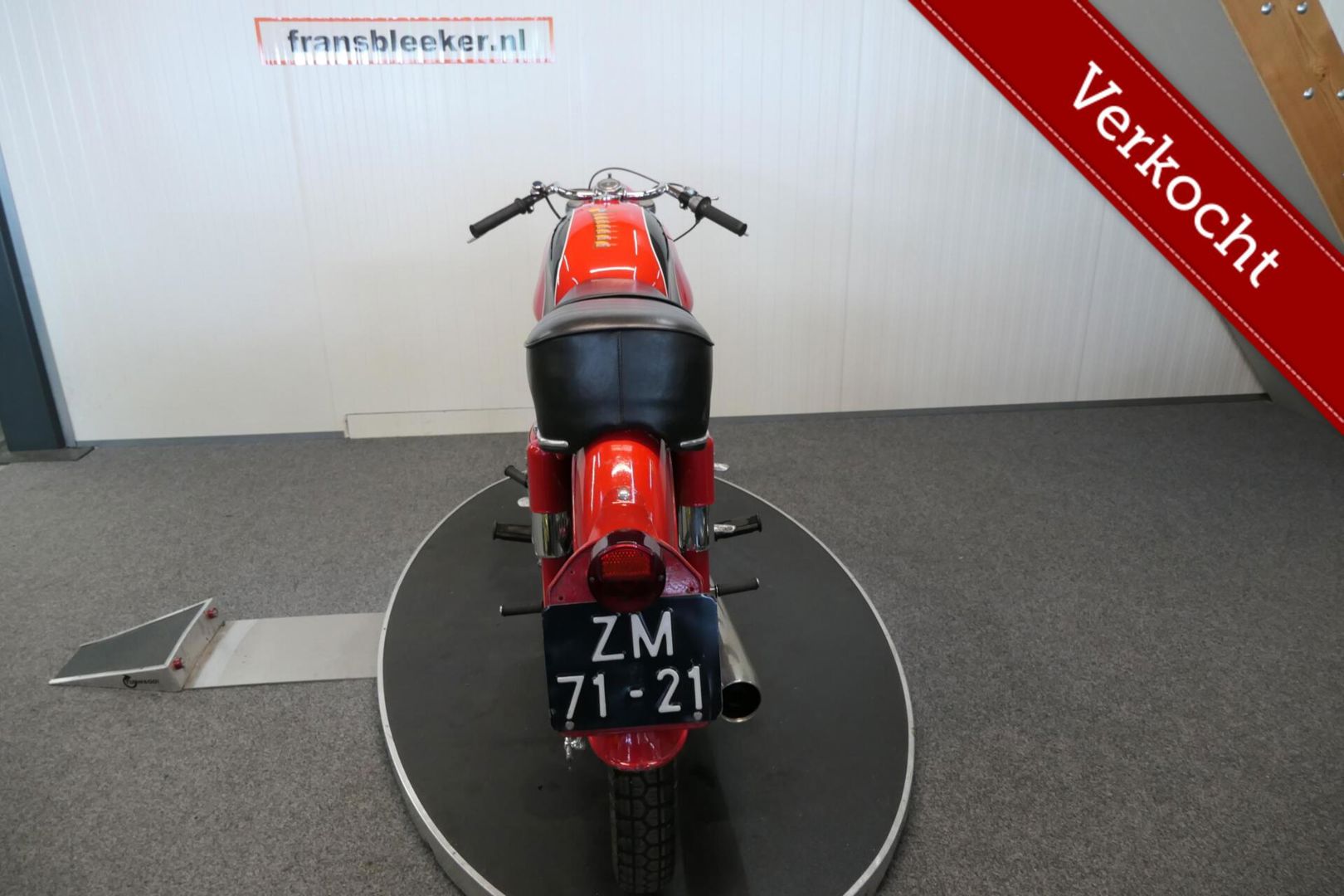

  • Kenteken: ZM-71-21
  • Merk: MV Agusta
  • Model: RAID 250

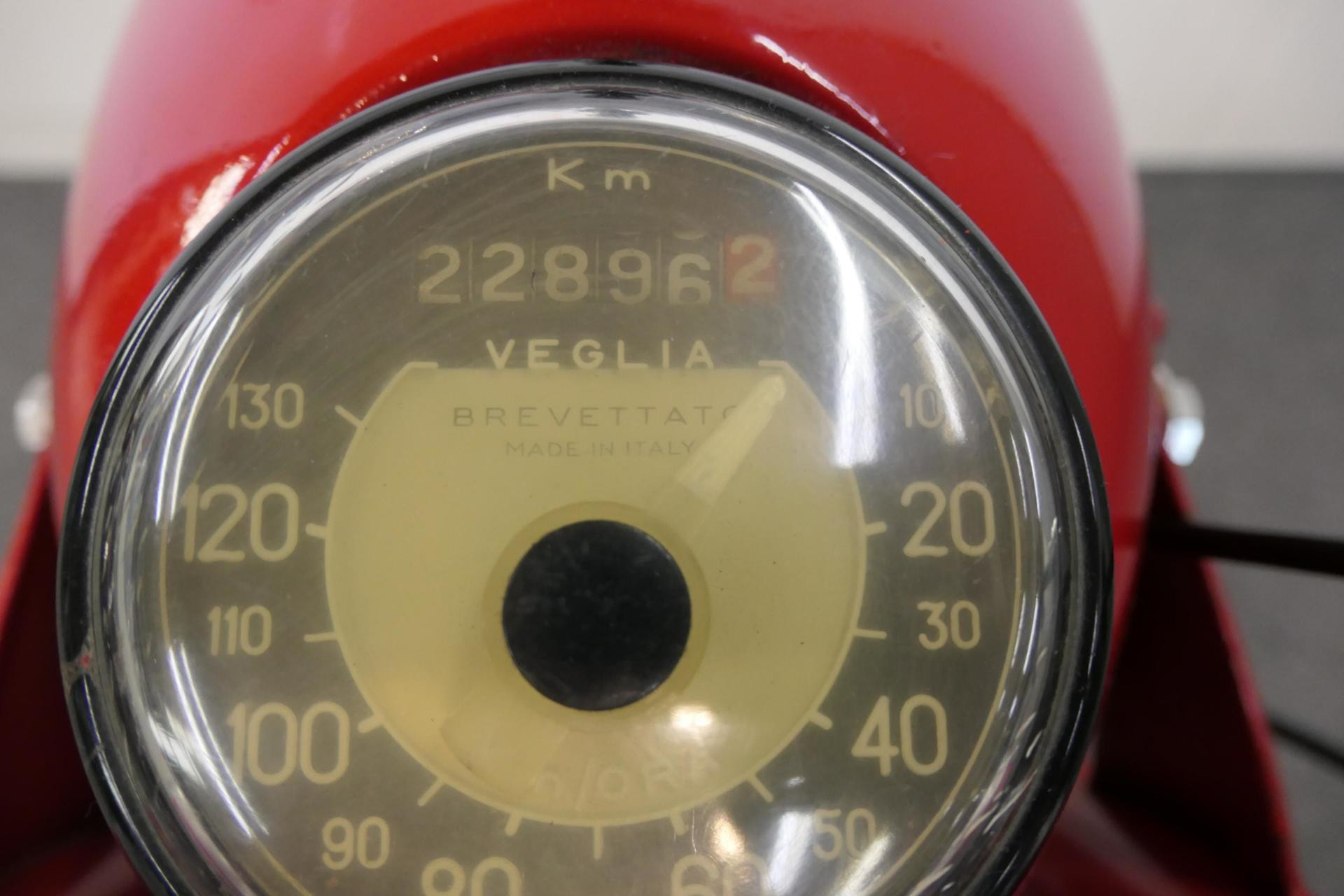

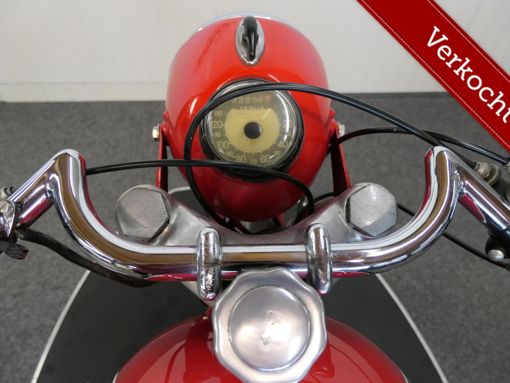

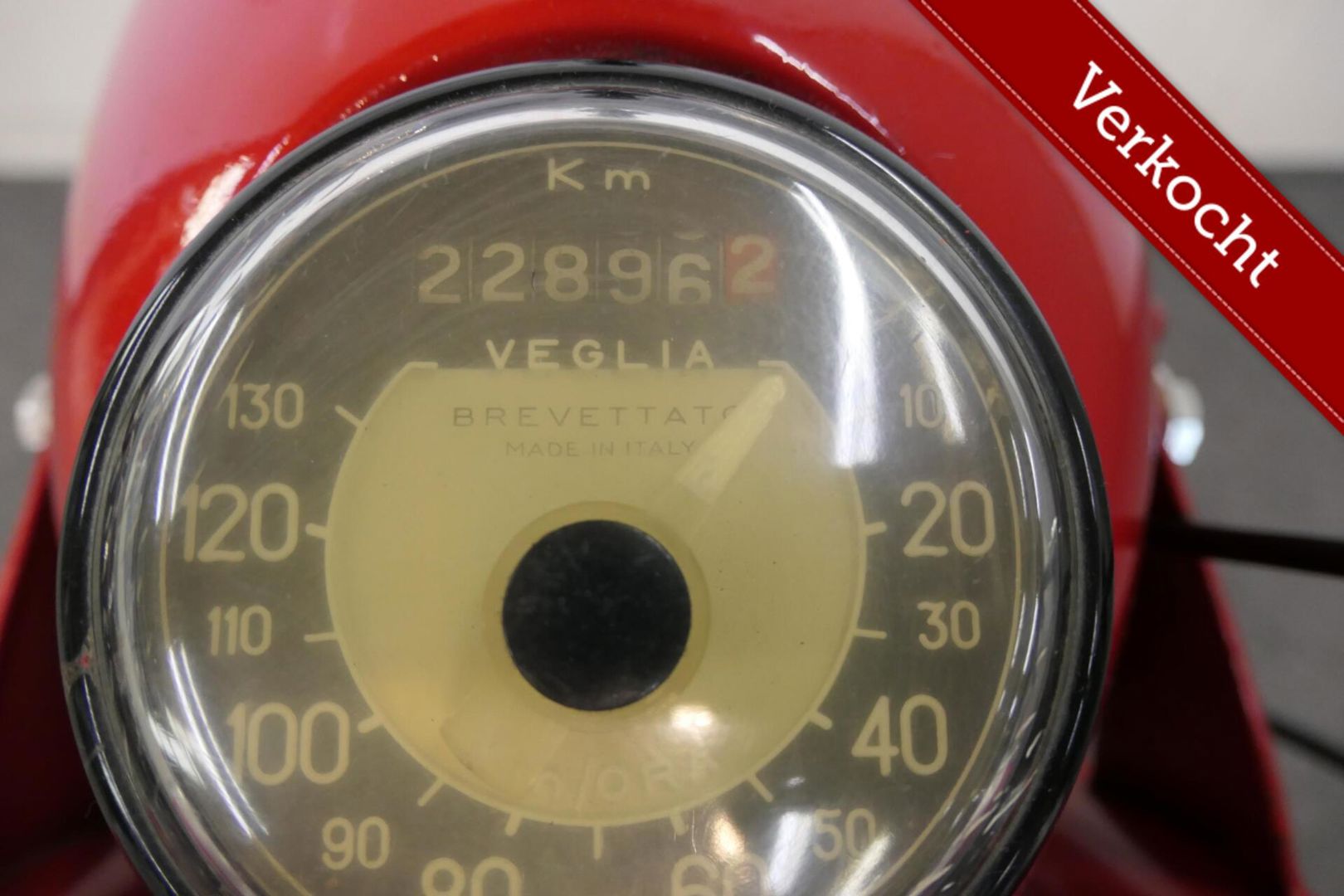

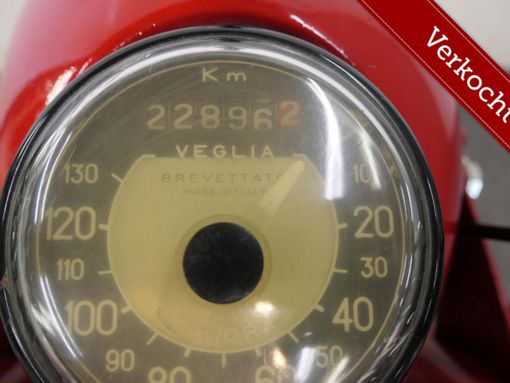

  • Tellerstand: 22896 KM
  • Brandstofsoort: Benzine
  • Bouwjaar: 1960
  • Kleur: rood
  • Motorinhoud: 247 cc
  • Aantal cilinders: 1
  • BTW/Marge: Marge, de BTW is niet aftrekbaar



Deze prachtige MV verkeerd in zeer nette gebruikte staat, een mooi collectors item,  prijs is op basis "zo mee"

Within Italy in the mid-1950’s   a 150cc and 175cc motorcycle was considered a mid-sized bike. So when the 250cc Raid (an Italian word describing a long fast, and adventurous trip by a motorcycle or car) debuted at the 1956 Milan Trade show, it generated considerable interest. With a displacement of 250cc, the Raid considered aa large capacty bike, able to crosss the Contenent with ease. With its 4-stroke, single cilinder engine rated 14 HP at 5.600 rpm, the Raid could top out at 115 km/h. The suspension was a traditional MV; a front fork with hydraulic shocks absorbers. Reflecting the 145 kg heft, the brakes were upgrated, with both front and reaar drums measuring 220mm. Priced upon release at 290.000 Lire, production ended in 1962.

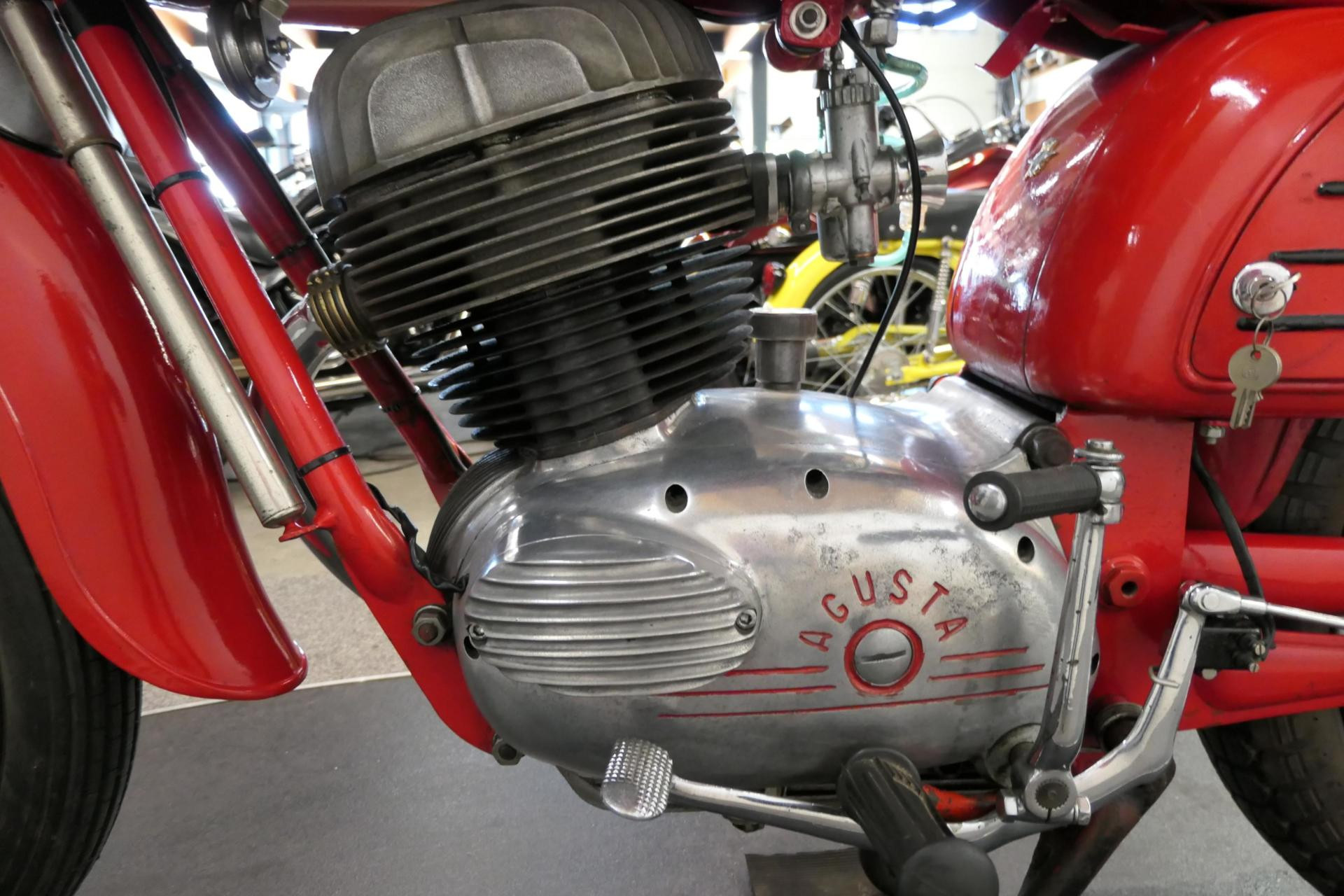

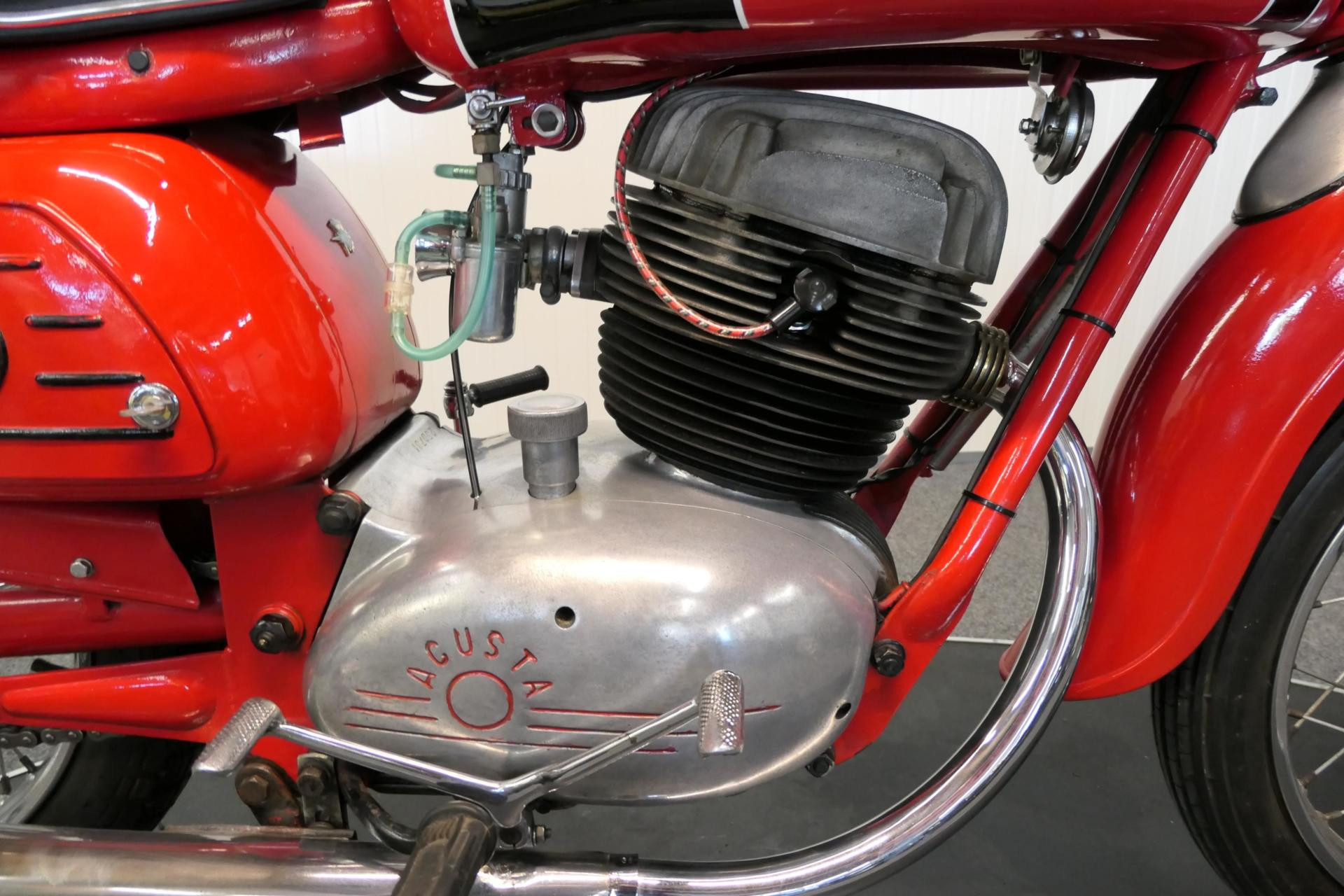

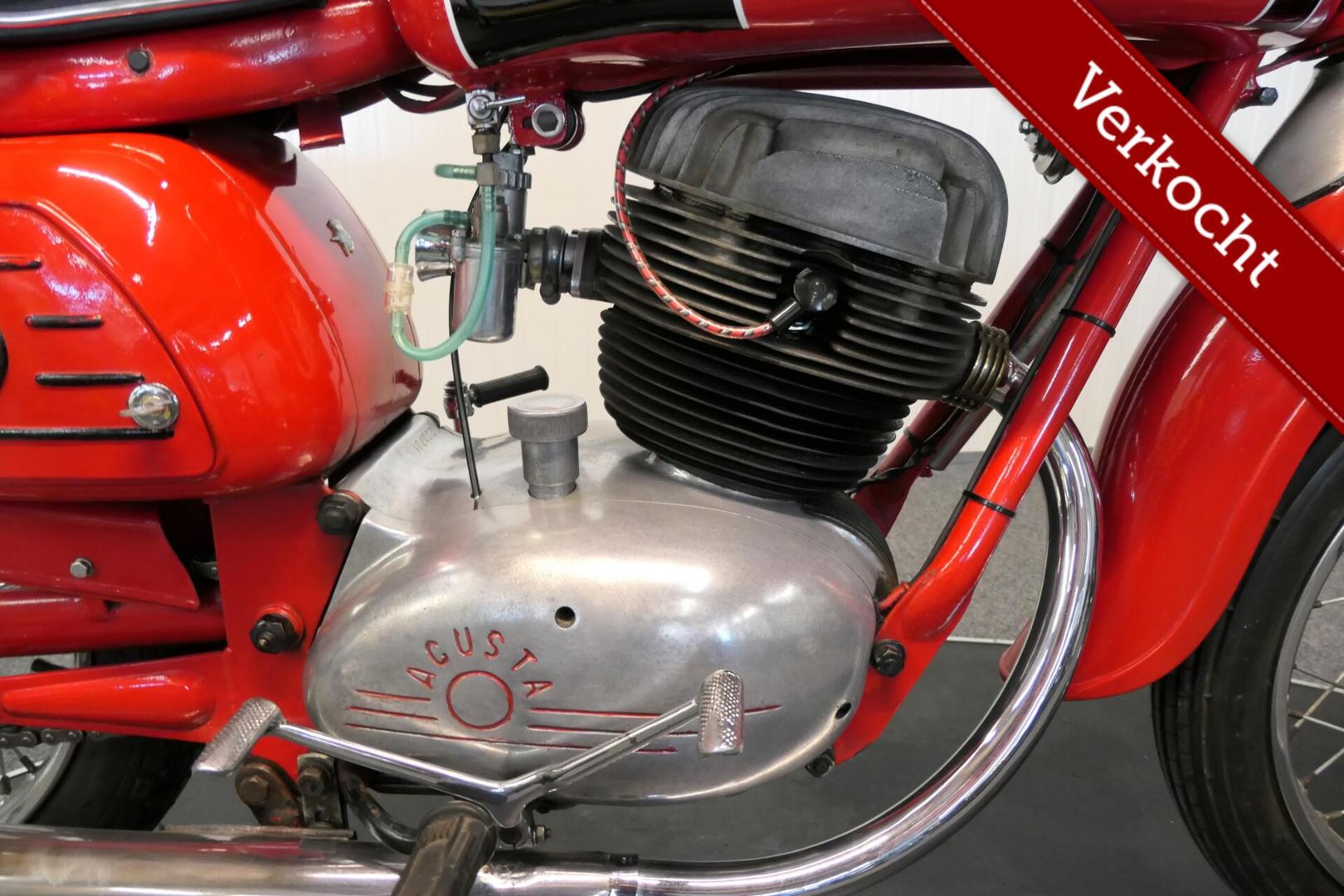

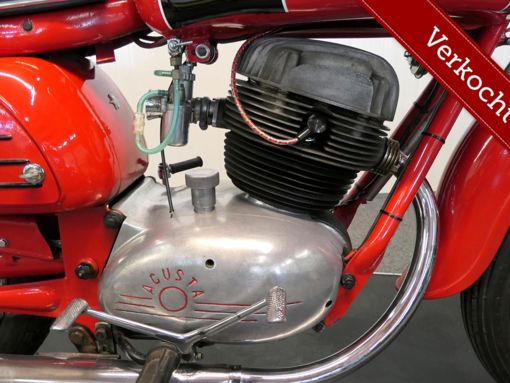

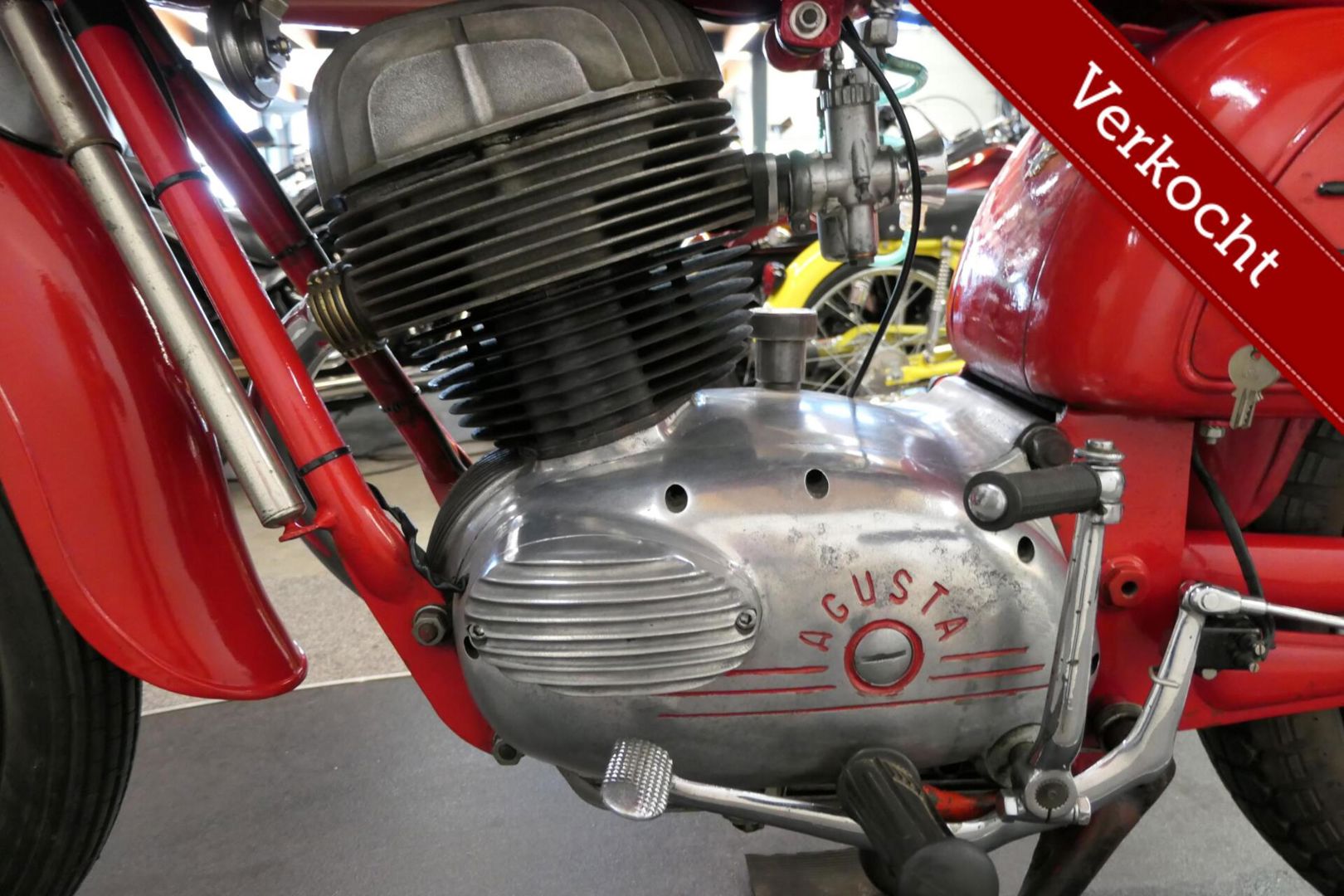

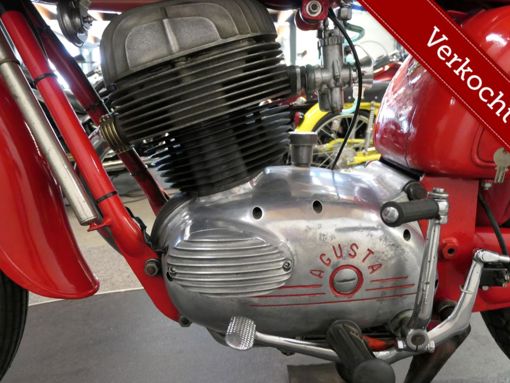

Engine:  Technical Specification (1959)
Cylinders / Cycle: single / 4-stroke
Displacement: 246,6 cc
Bore x stroke: 69 x 66 mm
Compression ratio: 7,2:1
Power / rpm: 14 HP / 5,600
Torque / rpm: NA
Cooling: air
Distribution: pushrod
Carburettor: 24 mm carburettor
Ignition: dynamo-commutator
Lubrication: wet sump
Starting: kickstart
Primary drive: gear
Clutch: wet multiple plate clutch
Gearbox: 4 speeds
Final drive: chain
Chassis:
Frame: double cradle tubular and pressed steel frame
Front suspension: telescopic hydraulic fork
Rear suspension: swingarm with hydraulic shocks

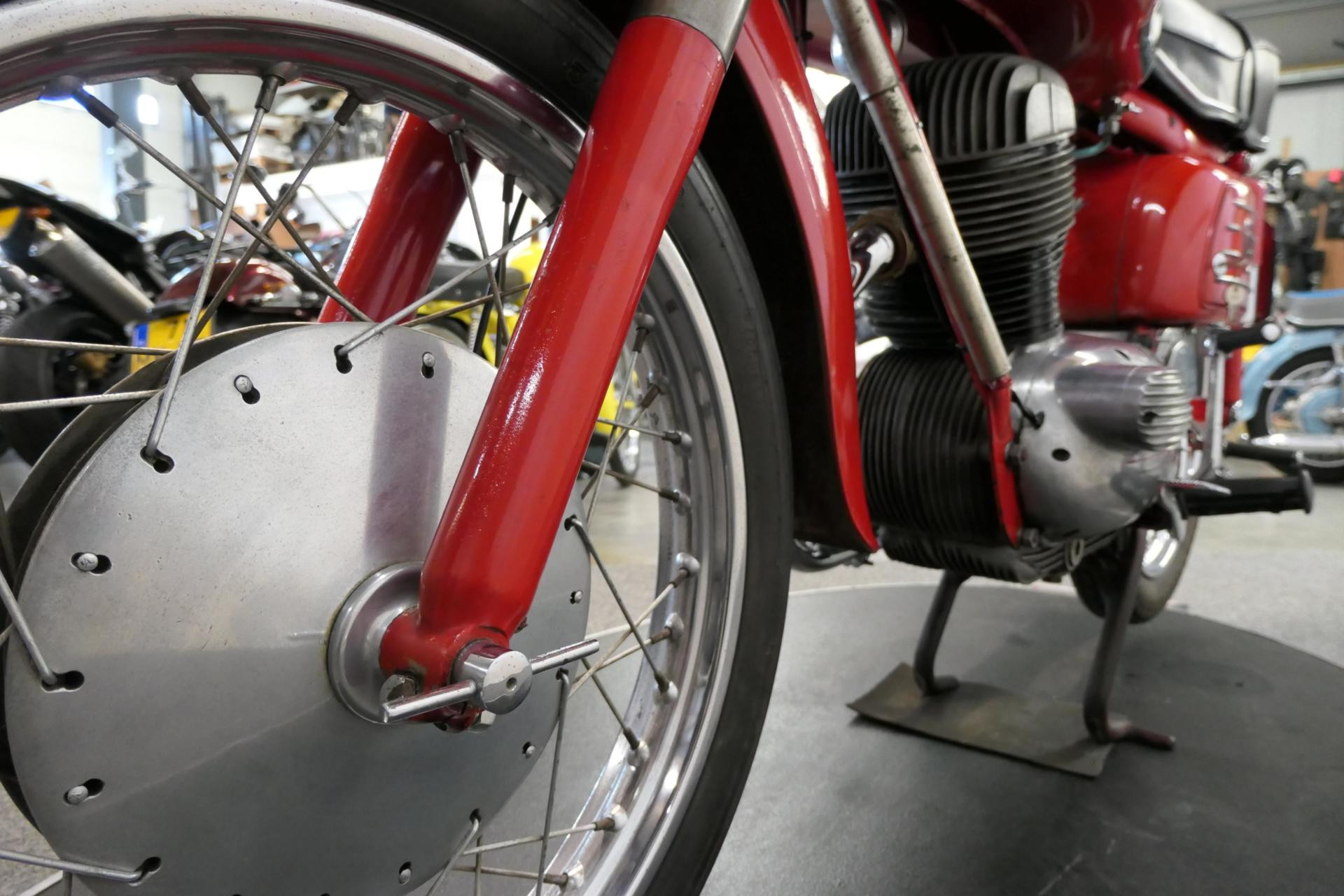

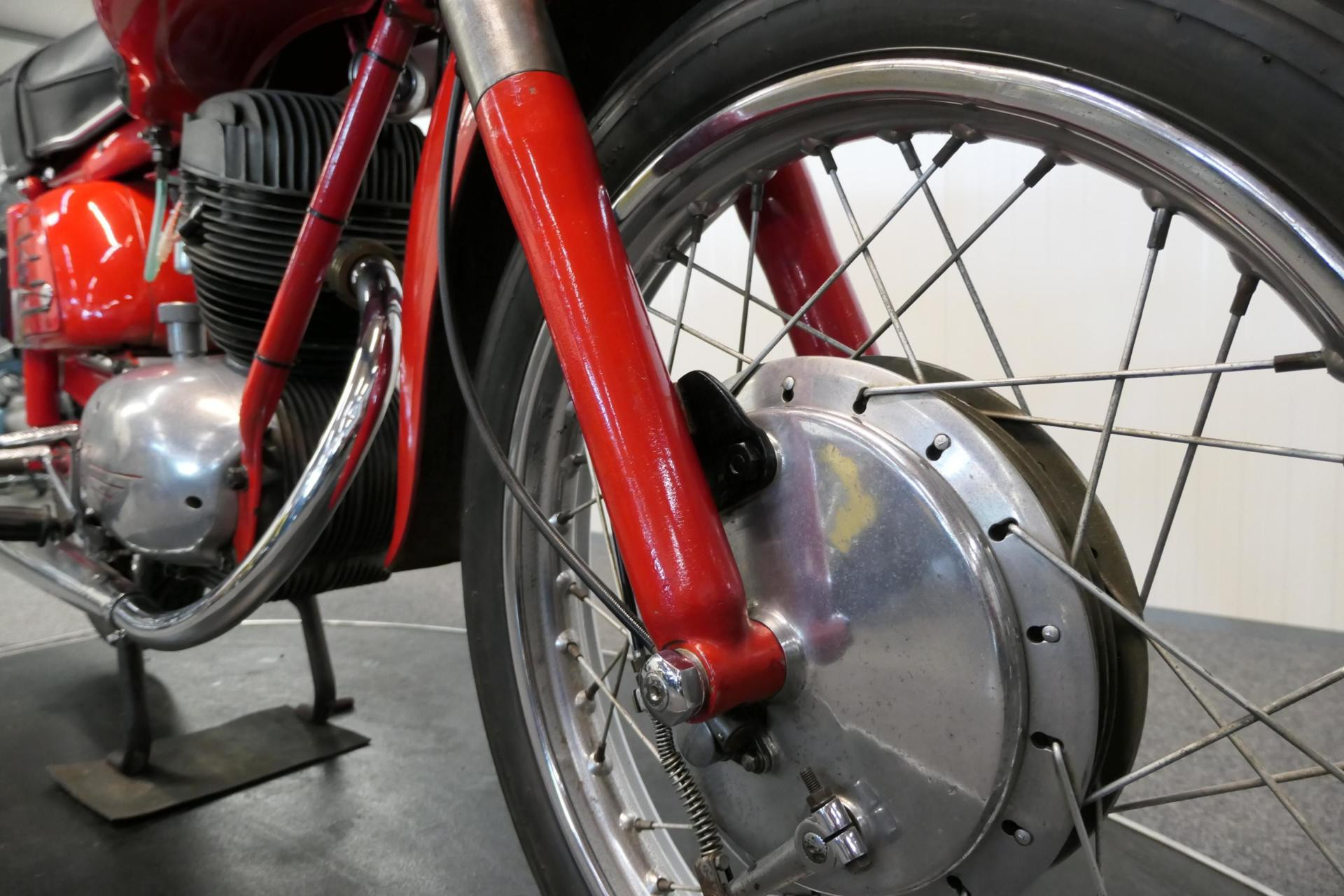

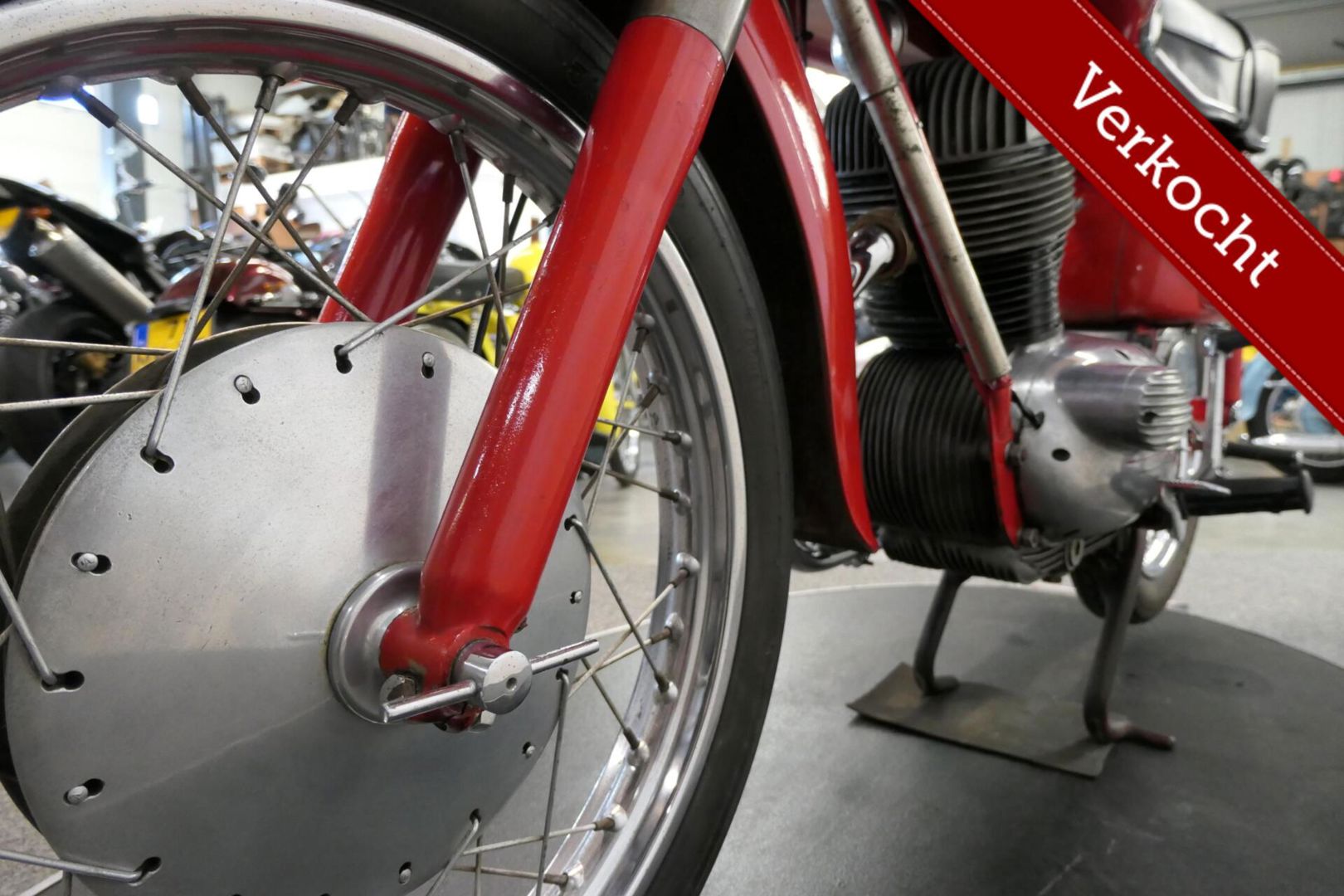

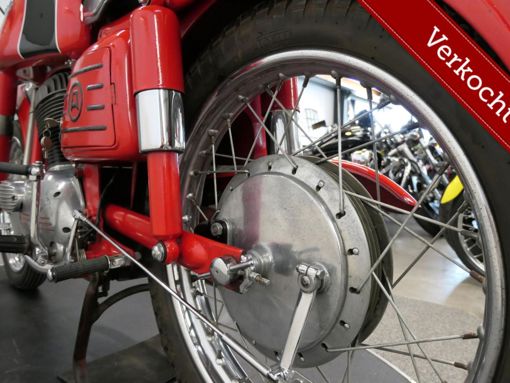

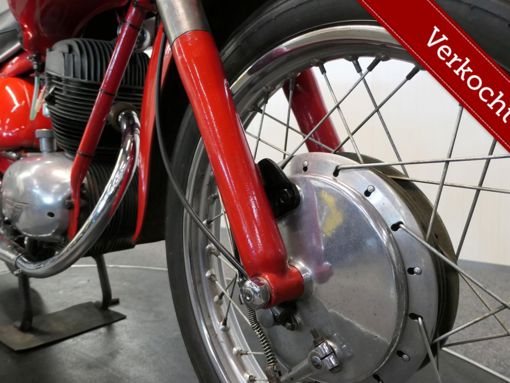

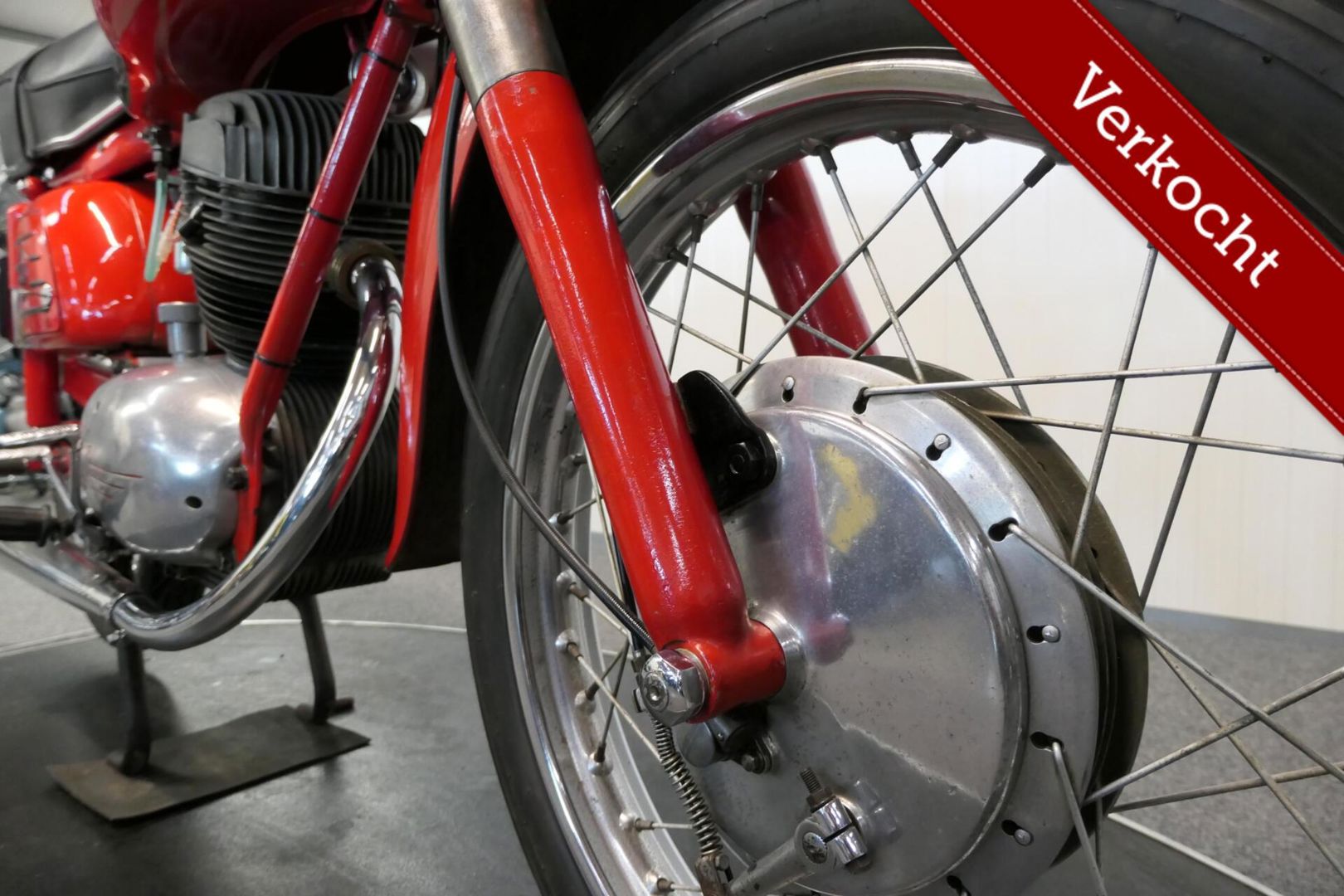

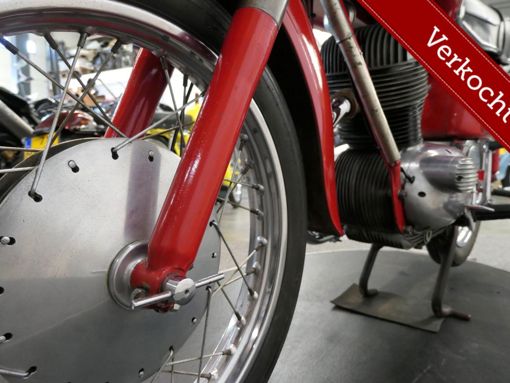

Front brake: 220 mm drum

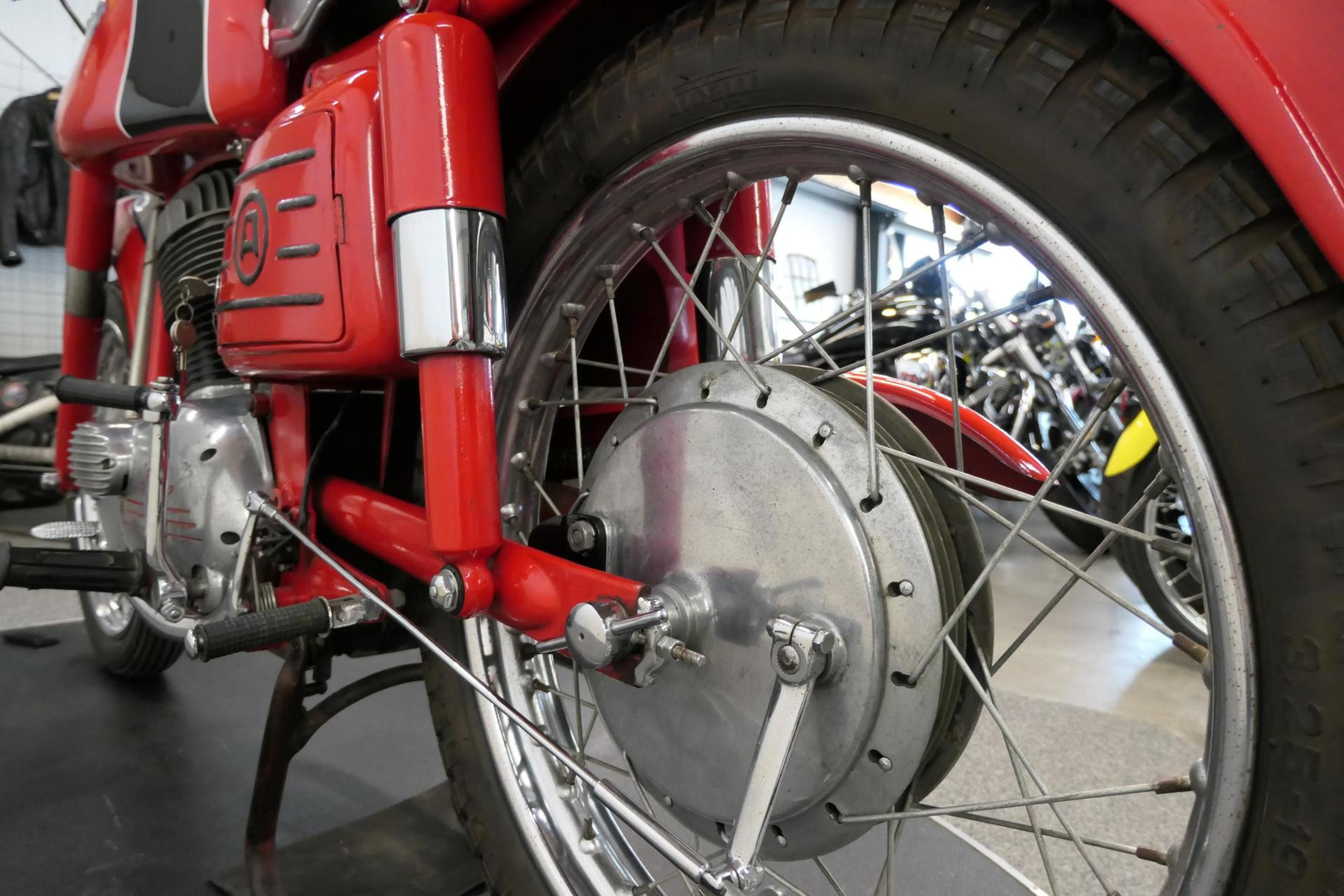

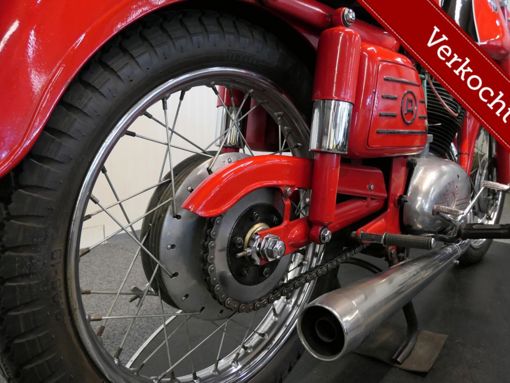

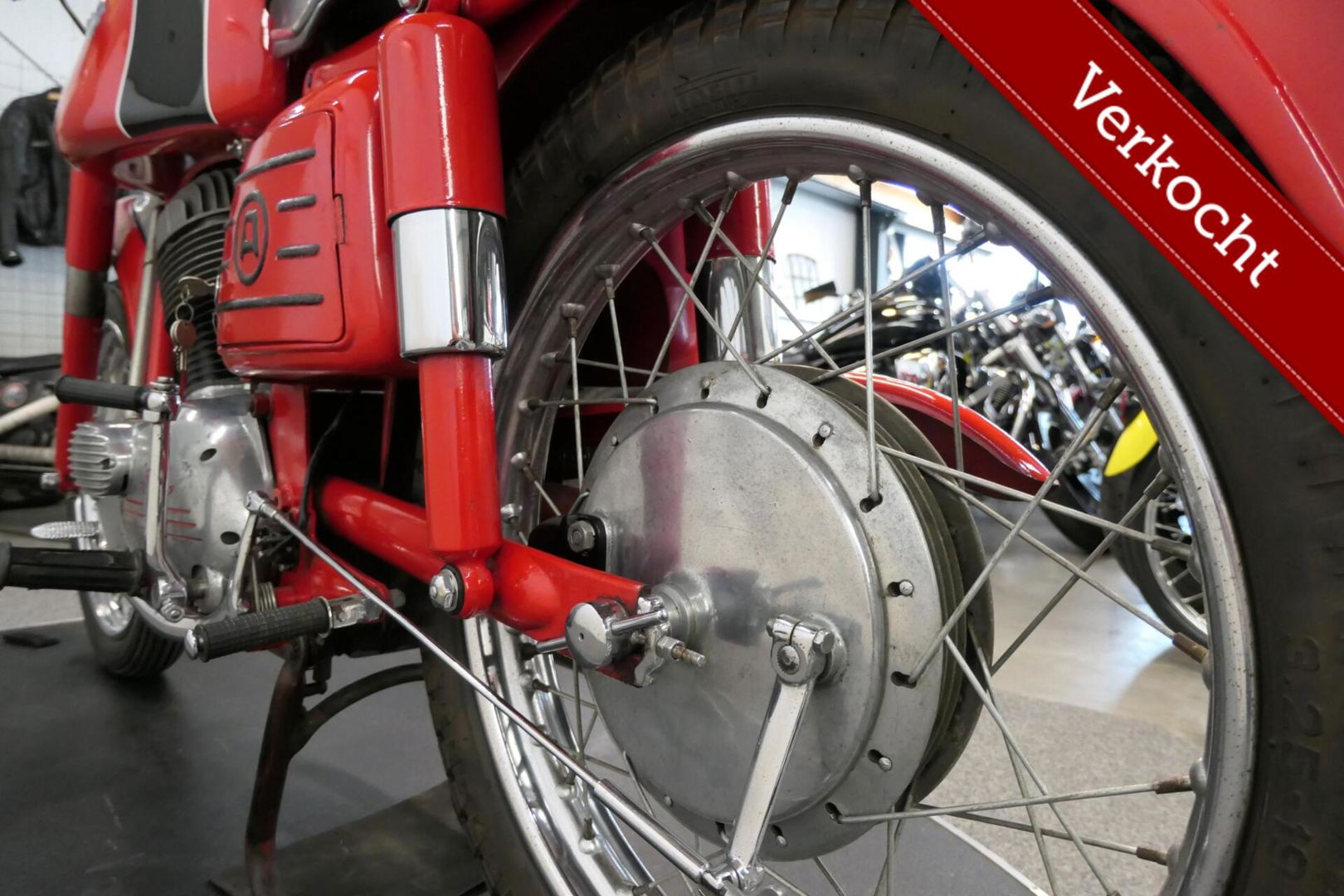

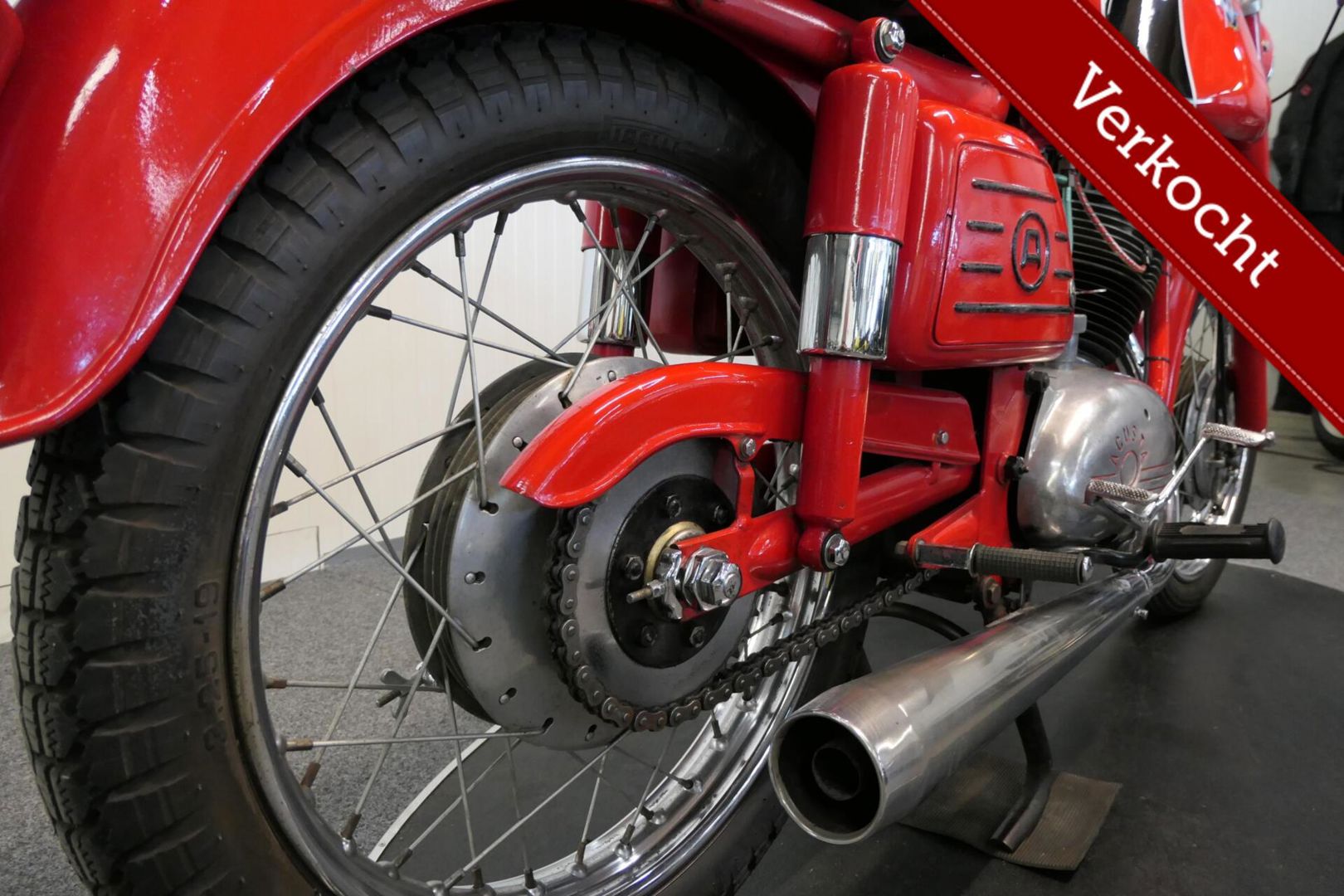

Rear brake:  220 mm drum
Front tire: 3.00 x19”
Rear tire: 3.25 x19”
Wheels: spokes

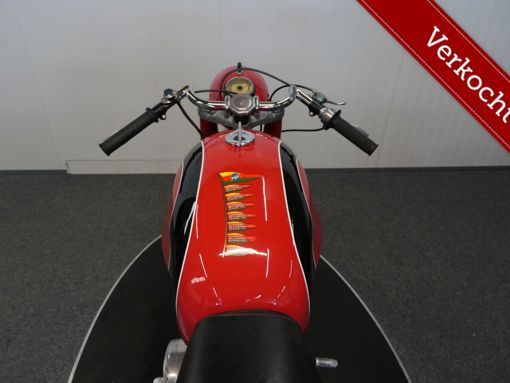

Tank: 17 litres
Length: 2040 mm
Width: 590 mm
Wheelbase: 1340 mm
Weight: 160 Kg
Performance:  115 kp/h

Aflevering
LET OP !    De geadverteerde prijzen zijn inclusief afleveringskosten, voor extra zekerheid bieden wij voor motoren vanaf €3000,- een onderhoudsbeurt incl. 3 maanden garantie aan, voor Harley's €450,- en voor andere merken motoren €350,-    TENZIJ ! er in de betreffende advertentie staat aangegeven "zo mee", voor klassiekers en schadeauto's / motoren geldt altijd "reparatie en onderhoud door koper op basis van "zo mee".
